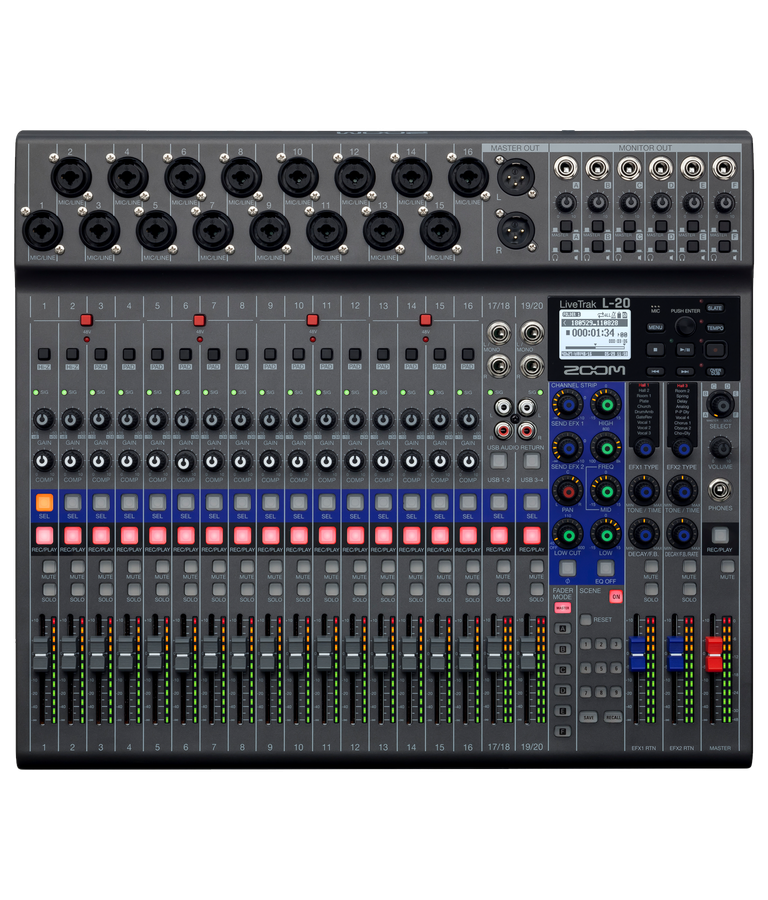

Zoom Recording Mixer LIVETRAK L-20
Zoom Recording Mixer LIVETRAK L-20
Zoom Recording Mixer LIVETRAK L-20
Zoom Recording Mixer LIVETRAK L-20
Zoom Recording Mixer LIVETRAK L-20
Zoom Recording Mixer LIVETRAK L-20

Zoom Recording Mixer LIVETRAK L-20

Rp 0,00
  • 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
  • 22-track simultaneous recording, 20-track playback
  • 22-in/4-out USB audio interface connectivity
  • Records up to 24bit/96kHz audio to SD card
  • 48V phantom power
  • Hi-Z connectivity (channels 1-2)
  • 26dB pad (channels 3-16)
  • Built-in compression control (Channels 1-16)
  • Solo buttons for individual channels
  • Variable frequency low-cut control
  • Main outputs plus 6 customizable monitor outputs
  • Dedicated headphone output for sound engineer
  • Scene saving function, up to 9 scenes saved at a time
  • 20 built-in chorus, delay and reverb effects with adjustable parameters
  • Two effect busses
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • Compatible with Remote Mixer app for iPad
  • Automatic recording starting/stopping capability
  • Pre-record function
  • Import/export projects with USB 2.0 host port
  • Compatible functions for ZOOM FS01 footswitch
  • Automatic power-save function

-

SPECS

NUMBER OF INPUT AND OUTPUT CHANNELS

INPUTS Mono (MIC/LINE): 16 Stereo (LINE): 2
OUTPUT MASTER OUT: 1 MONITOR OUT: 6 PHONES : 1


Inputs

MONO (MIC/LINE) Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain : PAD OFF: +16 – +60dB| PAD ON: ? 10 – +34 dB |Hi-Z ON: +6 – +50 dB Input impedance: XLR: 3 k ? | TRS: 10 k ? /1 M ? (when Hi-Z ON) Maximum input level: PAD OFF: 0 dBu (at 0 dBFS) | PAD ON: +26 dBu (at 0 dBFS) |Phantom power +48 V
STEREO (LINE) Type: TS phone/RCA pin (unbalanced) jacks | Maximum input level : +10 dBu


OUTPUTS

MASTER OUT Type: XLR jacks (balanced) | Maximum output level :+14.5 dBu | Output impedance: 100 ?
MONITOR OUT A–F (WITH BALANCED OUTPUT) CONNECTED TO MONITOR SPEAKERS Type: TRS phone jacks (balanced) | Maximum output level: +14.5 dBu | Output impedance: 100 ?
MONITOR OUT A– F (WITH UNBALANCED OUTPUT) CONNECTED TO HEADPHONES Type: Standard stereo phone jacks |Maximum output level: 42 mW + 42 mW at 60 ? |Output impedance: 100 ?
PHONES Type: Standard stereo phone jacks|Maximum output level: 42 mW + 42 mW at 60 ? |Output impedance: 100 ?


BUSES

MASTER 1
MONITOR 6
SEND EFX 2


CHANNEL STRIP

COMP
LOW CUT 40–600 Hz, 12dB/OCT
EQ HIGH: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking | LOW: 100 Hz, ± 15 dB, shelving


LEVEL METERS

LEVEL SEGMENTS 12


SEND EFFECTS

EFFECTS | 20 TYPES EFX 1 Hall 1, Hall 2, Room 1, Plate, Church , DrumAmb , GateRev, Vocal 1 , Vocal 2 , Vocal 3
  EFX 2 Hall 3, Room 2, Spring Delay, Analog P-P Dly , Vocal 4, Chorus 1, Chorus 2


RECORDER

MAXIMUM SIMULTANEOUS RECORDING TRACKS 22 at 44.1/48/96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS 20
RECORDING FORMAT WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
RECORDING MEDIA 4GB – 32GB SDHC cards (Class 10 or higher) , 64GB – 1TB SDXC cards (Class 10 or higher)


AUDIO INTERFACE

44.1/48 KHZ Recording: 22 channels | Playback: 4 channels
BIT DEPTH 24-bit
INTERFACE USB 2.0


CARD READER

CLASS Mass storage : USB 2.0 High Speed


SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

WINDOWS OS: Windows® 8.1 ~ 11 (32bit/64bit) | CPU: Intel® Core i3 or faster* | USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
MAC OS: macOS® 10.14 ~ 13 | CPU: Intel® Core i3 or faster | USB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards.
IPHONE/IPAD OS? iOS 9 ~ 16, iPadOS 16 * Apple Lightning-to-USB Camera Adapter required.


USB HOST

CLASS USB 2.0 High Speed


Additional Specs

SAMPLING FREQUENCY 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS 44.1 kHz: ?1.0 dB, 20 Hz – 20 kHz | 96 kHz: ?3.0 dB, 20 Hz – 40 kHz
EQUIVALENT INPUT NOISE Actual measurements: ?128dB EIN (IHF-A) at +60dB/150? input
DISPLAY LCD with backlight (128×64 resolution)
POWER AD-19 AC adapter (DC12V 2A)
POWER CONSUMPTION 24 W maximum
EXTERNAL DIMENSIONS 445 mm (W) × 388.4 mm (D) × 82.6 mm (H)
WEIGHT (MAIN UNIT ONLY) 3.71 kg



WHAT'S IN THE BOX

INCLUDED WITH THE L-20

  • LiveTrak L-20
  • AD-19 AC Adapter
  • USB 2.0 Cable
  • Quick Guide

OPTIONAL ACCESSORIES

  • RKL-12 Rack Mount Adapter
  • BTA-1 Bluetooth Adapter
  • FS-01 Momentary Footswitch
  • CBL-20 Carrying Bag


Free delivery and shipping
