  • 4K video and 4-track audio recorder
  • High-quality 150º wide-angle lens with 5 field of views
  • Interchangeable Zoom mic capsule system
  • Two XLR mic/line input (with phantom power)
  • Full-color flip LCD for self-movie capture
  • USB interface for livestreaming / data transfer
  • iOS/Android apps for remote control*

*Optional BTA-1 Blueto

Creator's Choice

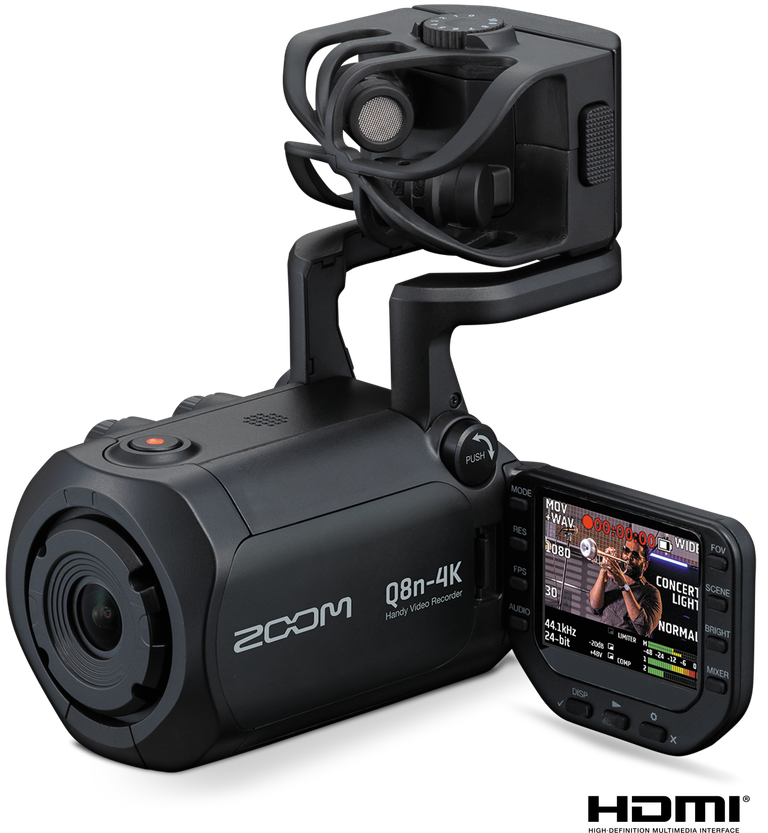

The Zoom Q8n-4K is designed to capture professional-grade audio with 4K video in a versatile, all-in-one handy recorder. It is the perfect video production and livestreaming solution for today’s musicians, filmmakers, podcasters and more.

Specs

Image Sensor

  1/2.3" 16 M-pixel CMOS sensor


Lens

  F 2.8, 150° FOV


Video Format

  MPEG-4 AVC/H.264 (MOV)


Video Resolutions

4K 30, 25, 24
1080 60, 50, 30, 25, 24
720 60, 50, 30, 25, 24


Audio Formats

WAV:
96 kHz 24-bit, 16-bit
48 kHz 24-bit, 16-bit
44.1 kHz 24-bit, 16-bit


Audio Functions

Lo Cut Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz
Fx Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate
Level ?? dB – +10 dB
Pan L100 - Center - R100
Delay 0 ms, 10 ms … 300 ms (only during web camera use)
Direct Monitor On/O? (only during web camera and USB mic


Image Functions

FOV 5 steps
SCENE AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT
Self timer OFF / 3 sec / 5 sec / 10 sec
BRIGHT LOW / NORMAL / HIGH


Display

  2.0" full-color LCD 320 × 240


Audio Inputs

MIC XY Mic: XYQ-8 (120° XY stereo mic?
  Maximum sound pressure: 120 dBSPL
  Input gain: ?? dB – 43 dB
INPUT 1 / 2 Input connector: XLR
  Input gain (PAD OFF): ?? dB – 55 dB
  Input impedance : 1.8 k? or more
  Maximum permissible input level: +26 dBu (PAD ON)
  Phantom power: +12 V / +24 V / +48 V
  Equivalent input noise: –120 dBu or less


Output Connectors

  Combined line/headphone stereo mini jack
  HDMI micro Type D


Built-in Speaker

  300 mW 8 ? mono speaker


Recording Media

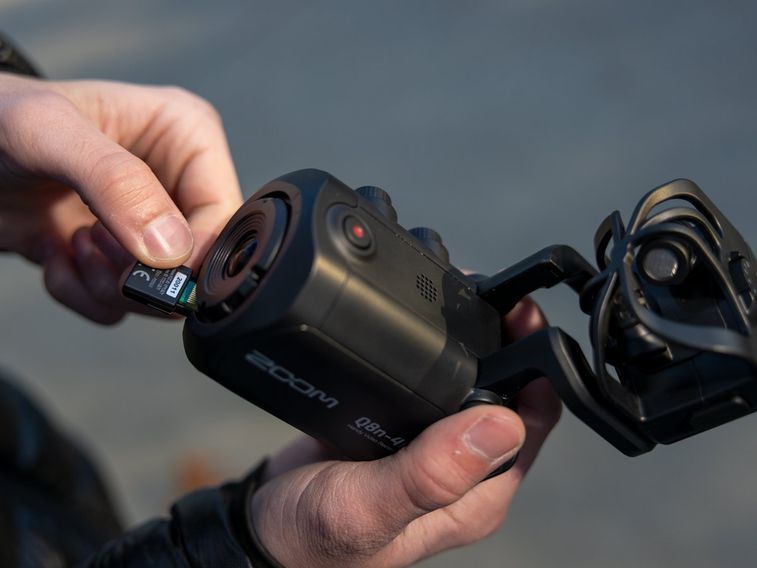

  microSD / microSDHC / microSDXC (1 TB maximum *Ver.1.10 or later)


USB

USB Type-C
WEBCAM Class: UVC 1.0 + UAC 1.0
  Formats: 720 p, 1080 p WVGA video
  48 kHz/16-bit audio stereo output
CARD READER Class?USB Mass Storage
USB MIC Class: UAC 1.0, Format: 44.1 kHz/16-bit
  2-input/2-output
  Note: card reader and USB mic functions support iOS devices
  Note: supports USB bus power operation
  Note: Use USB cable that supports data transfer.


Remote

  ZOOM BTA-1 or other dedicated wireless adapter


Power

  Lithium-ion battery: DC 4.2 V maximum voltage, DC 3.7 V nominal voltage, 1600 mAh capacity
  AC adapter (ZOOM AD-17): DC 5 V/1 A
Recharging times By USB 2.0 port: about 4 hours and 30 minutes
  By USB 3.0 port: about 3 hours
  Using ZOOM AD-17: about 3 hours
Battery operation time 4K/30: 1 hour and 20 minutes
  1080/30: 2 hours and 30 minutes
  Note: Times when MOV mode, 48 kHz/24-bit, XYQ-8 connected, no XLR input, Power Saving enabled


External Dimensions

Main unit (mic arm lowered) 159 mm (D) × 68 mm (W) × 65 mm (H)
Main unit (mic arm raised) 134 mm (D) × 68 mm (W) × 135 mm (H)
Mic 45 mm (D) × 66 mm (W) × 51 mm (H)


Weight

  367 g (including battery)
