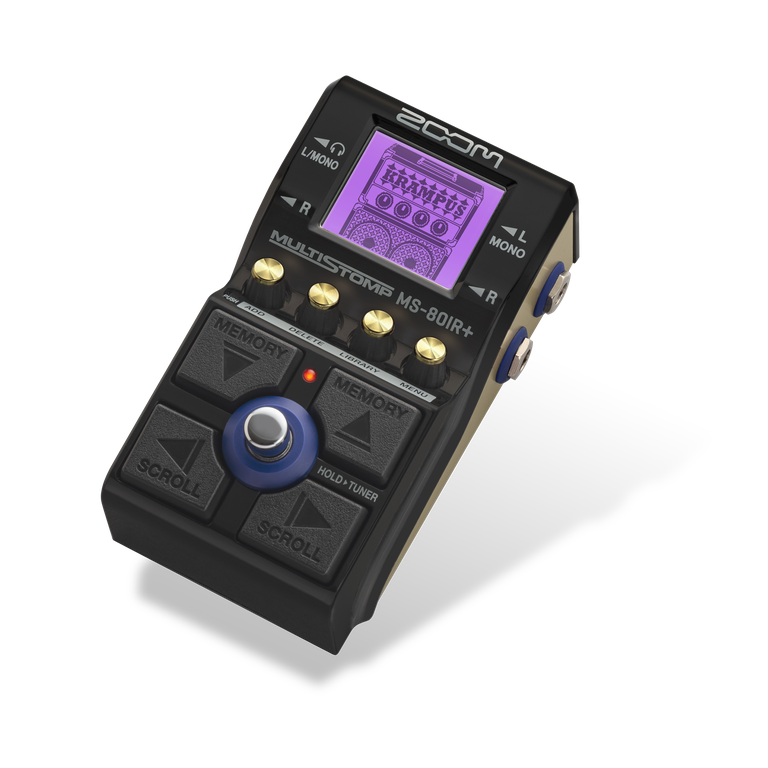

ZOOM MS-80IR+

ZOOM MS-80IR+

Rp 0,00
  • 23 guitar Amp/Cabinet models developed with Multi-Layer IR technology
  • 5 Studio Sounds effects to add natural reverb to your tone
  • 12 additional effects, including noise gates, EQ’s, and delays
  • Create and save 80 unique memory patches
  • 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
  • Stereo input (both active and passive instruments supported)
  • Stereo output for connection to amps, speaker or headphones
  • Output splitting lets you send signals with and without IR’s simultaneously
  • Chromatic tuner supports all standard guitar tunings, including open & drop tunings
  • 2-IN / 2-OUT Audio Interface function (via built-in USB-C port)
  • IR load function for speaker cabinet simulation
  • Runs on 2 AA batteries or AC Adapter
  • Handy Guitar Lab for MS-80IR+ App (iOS)

The MS-80IR+ gives guitarists an incredible assortment of amps created using the latest in IR and modeling technology. It comes fully stacked with 23 of the world’s most revered amps and cabs.



Maximum number of simultaneous e?ects   1 amplifier, 1 studio ambience and 1 other effect
User patch memories   80
Sampling frequency   44.1 kHz
A/D conversion   24-bit 128× oversampling
D/A conversion   24-bit 128× oversampling
Signal processing   32-bit
Frequency response   20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10k? load)
Display   160×128 dot-matrix LCD
Inputs L / R Standard mono phone jacks
    Rated input level: ?20 dBu
    Input impedance (line): 470 k?
Outputs L / MONO / Headphone Standard stereo phone jacks (combined line/headphone)
    Maximum output level: +7.2 dBu (when output impedance 10 k? or higher)
    Maximum output level: 20 mW + 20 mW (when 32? load)
  R Standard mono phone jacks
    Maximum output level: +7.2 dBu (when output impedance 10 k? or higher)
Input S/N   122 dB
Noise ?oor (residual noise) L / R –100 dBu
Power AC adapter 9V DC 500mA center negative (ZOOM AD-16)
  2 AA batteries Alkaline, Lithium or Rechargeable NiMH batteries
    • USB bus power is supported.
Estimated operation times using batteries Alkaline batteries About 3.5 hours (about 3 hours using stereo input)
  NiMH batteries (1900 mAh) About 4 hours (about 3.5 hours using stereo input)
  Lithium batteries About 7.5 hours (about 6.5 hours using stereo input)
    • These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB Port USB 2.0 Type-C
  Supported cable type: Type-C
  Handy Guitar Lab USB 1.1 Full Speed
  Audio interface USB 2.0 Full Speed
    44.1kHz/32-bit, 2 in 2 out
    • Use a USB cable that supports data transfer.
Dimensions   133 mm (D) × 79 mm (W) × 61 mm (H)
Weight   369 g (excluding batteries)
    416 g (including batteries)


Note: 0 dBu = 0.775 V
