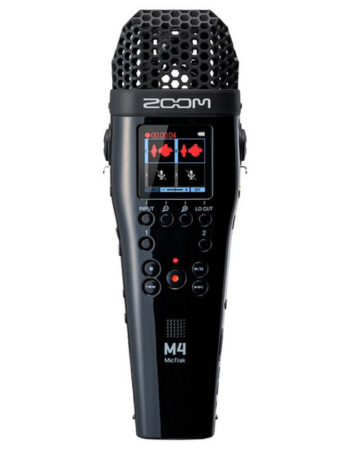

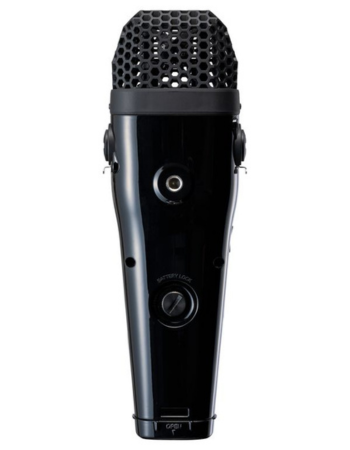

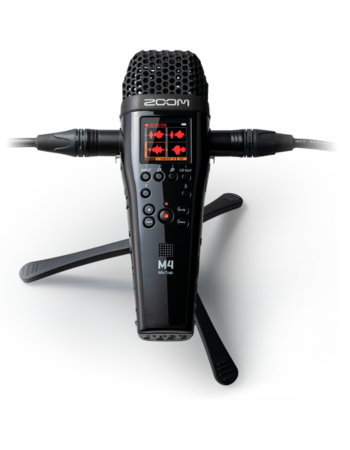

Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float
Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float

Zoom M4 MicTrak Four Track Recording with Timecode Generator and 32-Bit Float

Rp 0,00
  • 4-Track 32-bit float recorder
  • Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
  • Body construction, and specialized finish to reduce handling noise
  • 2 XLR/TRS inputs with F-Series preamps
  • Color LCD Screen with waveform display
  • Timecode Generator with 3.5mm in/out
  • Onboard Normalization function
  • 3.5mm headphone output plus 3.5mm stereo line output for camera connection
  • USB Interface compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
  • Use as an audio interface and record to SD card simultaneously
  • Runs on 4 AA batteries* (18 hour battery life)


* Batteries not included
** For Android, 32-Bit Float cannot be used with USB Microphone

-

Inputs

CHANNELS   2 (BUILT IN XY MIC) + 2(XLR/TRS INPUTS)
MIC INPUT MIC TYPE: Unidirectional
  SENSITIVITY: -42 dB, 1 kHz at 1 Pa
  INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
  MAX SOUND PRESSURE INPUT: 135 dB SPL
EXT MIC INPUT CONNECTORS: 1/8" stereo mini jack
  INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
  INPUT IMPEDANCE: 2 k? or more

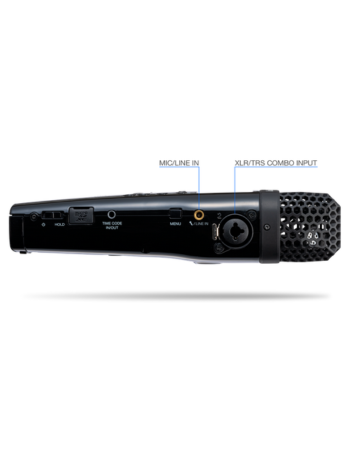

XLR/TRS INPUTS CONNECTORS: XLR (2:HOT)/TRS combo jacks
  INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
  INPUT IMPEDANCE: MIC: 3 k? or more LINE: 3 k? or more
  MAXIMUM INPUT LEVEL: MIC: +4 dBu LINE: +24 dBu
  PHANTOM POWER: +24/+48V 10mA maximum for each channel
  EQUIVALEN INPUT NOISE: ?127 dBu or less (IHF-A)

Outputs

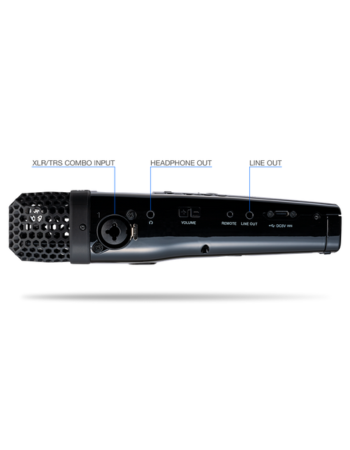

LINE OUT CONNECTOR: 1/8" stereo mini jack
  MAXIMUM OUTPUT LEVEL: +1 dBu
HEADPHONE CONNECTOR: 1/8" stereo mini jack
  MAXIMUM OUTPUT LEVEL: 20 mW +20 mW(32 ? load)
BUILT-IN SPEAKER   500mW/8? mono speaker

Recording

RECORDING MEDIA   4GB–32GB microSDHC cards 64GB–1TB microSDXC cards
WAV SUPPORTED FORMATS: -44.1/47.952/48/48.048/96/192kHz -32-bit float -mono/stereo -BWF and iXML
  MAXIMUM SIMULTANEOUS RECORDING TRACKS: 4 (2 BUILT IN XY MIC + 2 XLR/TRS INPUTS)

Timecode

CONNECTOR   1/8" stereo mini jack (Tip: IN, Ring: OUT)
MODES   Off Int Free Run, Int Record Run, Int RTC Run Ext
FRAME RATES   23.976ND 24ND 25ND 29.97ND 29.97D 30ND 30D
PRECISION   ±0.2 ppm
SUPPORTED INPUT LEVELS   0.2 – 5.0 Vpp
INPUT IMPEDANCE   4.6 k?
OUTPUT LEVEL   3.3 Vpp
OUTPUT IMPEDANCE   50 ? or less

Power Supplies

BATTERIES   4 AA
AC ADAPTER   ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported.

DISPLAY

LCD   1.54" full color (240 × 240)

Remote

INPUT   RC2/RC4/RCH-5/RCH-6

USB

CONNECTOR   USB Type-C
MASS STORAGE CLASS: USB 2.0 High Speed
AUDIO INTERFACE WITH REC CLASS: USB 2.0 High Speed
  SAMPLING RATE: 48kHz
  BIT RATE: 24-bit/32-bit float
  CHANNELS: 4 in/2 out

Estimated Continuous Operation Time Using Batteries

48 KHZ/32-BIT FLOAT, 2CH RECORDING TO MICROSDHC CARD   Alkaline batteries: about 18 hours

Included

    Quick Guide
    Windscreen
Free delivery and shipping
Secure online payment
Free delivery and shipping
Secure online payment
Free delivery and shipping
Secure online payment
fast global shipping
Free returns
100% secure payments
Free climate compensated shipping
fast global shipping
Free returns
100% secure payments
Free climate compensated shipping

More info

Description
  • 4-Track 32-bit float recorder
  • Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
  • Body construction, and specialized finish to reduce handling noise
  • 2 XLR/TRS inputs with F-Series preamps
  • Color LCD Screen with waveform display
  • Timecode Generator with 3.5mm in/out
  • Onboard Normalization function
  • 3.5mm headphone output plus 3.5mm stereo line output for camera connection
  • USB Interface compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
  • Use as an audio interface and record to SD card simultaneously
  • Runs on 4 AA batteries* (18 hour battery life)


* Batteries not included
** For Android, 32-Bit Float cannot be used with USB Microphone

-

Inputs

CHANNELS   2 (BUILT IN XY MIC) + 2(XLR/TRS INPUTS)
MIC INPUT MIC TYPE: Unidirectional
  SENSITIVITY: -42 dB, 1 kHz at 1 Pa
  INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
  MAX SOUND PRESSURE INPUT: 135 dB SPL
EXT MIC INPUT CONNECTORS: 1/8" stereo mini jack
  INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
  INPUT IMPEDANCE: 2 k? or more
XLR/TRS INPUTS CONNECTORS: XLR (2:HOT)/TRS combo jacks
  INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
  INPUT IMPEDANCE: MIC: 3 k? or more LINE: 3 k? or more
  MAXIMUM INPUT LEVEL: MIC: +4 dBu LINE: +24 dBu
  PHANTOM POWER: +24/+48V 10mA maximum for each channel
  EQUIVALEN INPUT NOISE: ?127 dBu or less (IHF-A)

Outputs

LINE OUT CONNECTOR: 1/8" stereo mini jack
  MAXIMUM OUTPUT LEVEL: +1 dBu
HEADPHONE CONNECTOR: 1/8" stereo mini jack
  MAXIMUM OUTPUT LEVEL: 20 mW +20 mW(32 ? load)
BUILT-IN SPEAKER   500mW/8? mono speaker

Recording

RECORDING MEDIA   4GB–32GB microSDHC cards 64GB–1TB microSDXC cards
WAV SUPPORTED FORMATS: -44.1/47.952/48/48.048/96/192kHz -32-bit float -mono/stereo -BWF and iXML
  MAXIMUM SIMULTANEOUS RECORDING TRACKS: 4 (2 BUILT IN XY MIC + 2 XLR/TRS INPUTS)

Timecode

CONNECTOR   1/8" stereo mini jack (Tip: IN, Ring: OUT)
MODES   Off Int Free Run, Int Record Run, Int RTC Run Ext
FRAME RATES   23.976ND 24ND 25ND 29.97ND 29.97D 30ND 30D
PRECISION   ±0.2 ppm
SUPPORTED INPUT LEVELS   0.2 – 5.0 Vpp
INPUT IMPEDANCE   4.6 k?
OUTPUT LEVEL   3.3 Vpp
OUTPUT IMPEDANCE   50 ? or less

Power Supplies

BATTERIES   4 AA
AC ADAPTER   ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported.

DISPLAY

LCD   1.54" full color (240 × 240)

Remote

INPUT   RC2/RC4/RCH-5/RCH-6

USB

CONNECTOR   USB Type-C
MASS STORAGE CLASS: USB 2.0 High Speed
AUDIO INTERFACE WITH REC CLASS: USB 2.0 High Speed
  SAMPLING RATE: 48kHz
  BIT RATE: 24-bit/32-bit float
  CHANNELS: 4 in/2 out

Estimated Continuous Operation Time Using Batteries

48 KHZ/32-BIT FLOAT, 2CH RECORDING TO MICROSDHC CARD   Alkaline batteries: about 18 hours

Included

    Quick Guide
    Windscreen
