Perekam lapangan profesional yang tidak pernah mudah untuk diakses.
Pembuat konten yang membuat lebih banyak gelombang dalam film dari pada sebelumnya. Berkat teknologi dan saluran distribusi yang terjangkau seperti YouTube, kami mengantarkan era baru kreativitas ... yang baru saja dimulai.

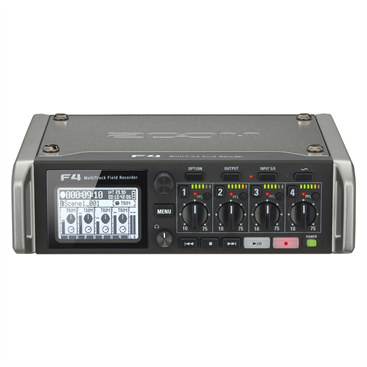

Zoom F4 mendorong suara film Anda ke tingkat yang baru. Dengan rekaman 6-input / 8-track, mic preamps super-low-noise, dan kode waktu dengan akurasi yang tepat, F4 menawarkan suara Hollywood dengan anggaran indie.
-
RECORDING MEDIA
Dual SD card slot supports:
16 MB – 2 GB SD cards
4 GB – 32 GB SDHC cards
64 GB – 512 GB SDXC cards
INPUTS 1-4
Connectors:
XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
INPUTS: XLR (MIC)
Input gain:
+10 – +75 dB
Input impedance:
3.0 kO or more
Maximum input level:
+14 dBu (at 0 dBFS, limiter ON)
Phantom power:
+24/+48V 10mA maximum for each channel
INPUTS: TRS (LINE)
Input gain:
-10 – +55 dB
Input impedance:
22 kO or more
Maximum input level:
+24 dBu (at 0 dBFS, limiter ON)
INPUTS: ADDITIONAL INFO
Equivalent input noise:
-127 dBu or less
(A-weighted, +75 dB input gain, 150O input)
Frequency characteristics:
10 Hz – 80 kHz +0.5 dB/-1.5 dB
(192 kHz sampling rate)
A/D dynamic range:
120 dB typ (-60 dBFS input, A-weighted)
Crosstalk:
-90 dB or less
(between adjacent channels, 1 kHz)
MIC IN:
ZOOM mic capsule input
(use disables Inputs 5/6)
RTN IN
Connectors:
3.5 mm stereo mini unbalanced output jack
Reference input level:
+10 dBV (Level: -10 dBV setting),
+4 dBu (Level: +4 dBu setting)
Input impedance:
10k O or more
Maximum input level:
-10 dBV (Level: -10 dBV setting)
+24 dBu (Level: +4 dBu setting)
OUTPUTS: MAIN OUT 1/2
Connectors:
XLR balanced output (2: hot)
Output impedance:
150 O or less
Reference output level:
-10 dBV, 1 kHz, 600O load
Maximum output level:
+10 dBV, 1 kHz, 600O load
OUTPUTS: SUB OUT 1/2
Connector:
3.5 mm stereo mini unbalanced output jack
Output impedance:
1k O or less
Reference output level:
-10 dBV (Normal Output Type),
-40 dBV (Mic Output Type), 1 kHz, 10kO load
Maximum output level:
+10 dBV (Normal Output Type),
-20 dBV (Mic Output Type), 1 kHz, 10kO load
HEADPHONE
Connector:
1/4" unbalanced stereo output jack
Output impedance:
15 O or less
Maximum output level:
100 mW + 100 mW
(32O load)
D/A
D/A dynamic range:
106 dB typical (-60dBFS input, A-weighted)
RECORDING FORMATS: WHEN WAV SELECTED
Supported formats:
44.1/47.952/48/48.048/88.2/96/192kHz,
16/24-bit, mono/stereo/2-10 ch poly, BWF and iXML
Maximum simultaneous recording tracks:
8 (6 Inputs + L/R MIX recording at 192kHz sampling rate)
RECORDING FORMATS: WHEN MP3 SELECTED
Supported formats:
128/192/320 kbps, 44.1/48 kHz, ID3v1 tags
Maximum simultaneous recording tracks:
2
RECORDING TIME
Using a 32 GB card:
30:51:00 (48 kHz/24-bit stereo WAV)
7:42:00 (192 kHz/24-bit stereo WAV)
TIME CODE
Connector:
BNC
Modes:
Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode)
Frame rates:
23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
Precision:
±0.2 ppm
Supported input levels:
0.2 – 5.0 Vpp
Input impedance:
4.3k O or more
Output level:
3.0 Vpp ±10%
Output impedance:
50 O or less
POWER SUPPLIES
Batteries:
8 AA
AC adapter:
Zoom AD-19 DC12 V 2A (center plus) via DC-HIROSE cable adapter (both included)
External DC power supply:
HIROSE HR10A-7R-4S 4-pin connector
(1 pin: -, 4 pin: +), 9–16 V
CONTINUOUS RECORDING TIME: WHEN RECORDING 2 CHANNELS AT 48 KHZ/16-BIT WITHOUT HEADPHONES
Alkaline batteries:
9.5 hours or more
NiMH (2450mAh):
11.5 hours or more
Lithium batteries:
-
hours or more
CONTINUOUS RECORDING TIME: WHEN RECORDING 8 CHANNELS AT 48 KHZ/24-BIT WITH HEADPHONES
Alkaline batteries:
9 hours or more
NiMH (2450mAh):
10.5 hours or more
Lithium batteries:
-
hours or more
CONTINUOUS RECORDING TIME: WHEN RECORDING 8 CHANNELS AT 192 KHZ/24-BIT WITH HEADPHONES, PHANTOM POWER, AND DISPLAY BACKLIGHTING
Alkaline batteries:
2 hours or more
NiMH (2450mAh):
3.5 hours or more
Lithium batteries:
6 hours or more
DISPLAY
1.9" monochrome LCD with white backlight
USB: MASS STORAGE OPERATION
Class:
USB 2.0 High Speed
USB: MULTITRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class:
USB 2.0 High Speed
Specifications:
44.1/48/96 kHz, 16/24-bit, 6-in/4-out
USB: STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED)
Class:
USB 2.0 High Speed
Specifications:
44.1/48 kHz, 16-bit, 2-in/2-out
Note: iPad audio interface operation supported (Stereo Mix mode only)
EXTERNAL DIMENSIONS
Main unit:
7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
177.8 mm (W) × 141.1 mm (D) × 54.3 mm (H)
WEIGHT
Main unit only:
2.27 pounds (1030g)
