RECORD & STREAM WITH EASE

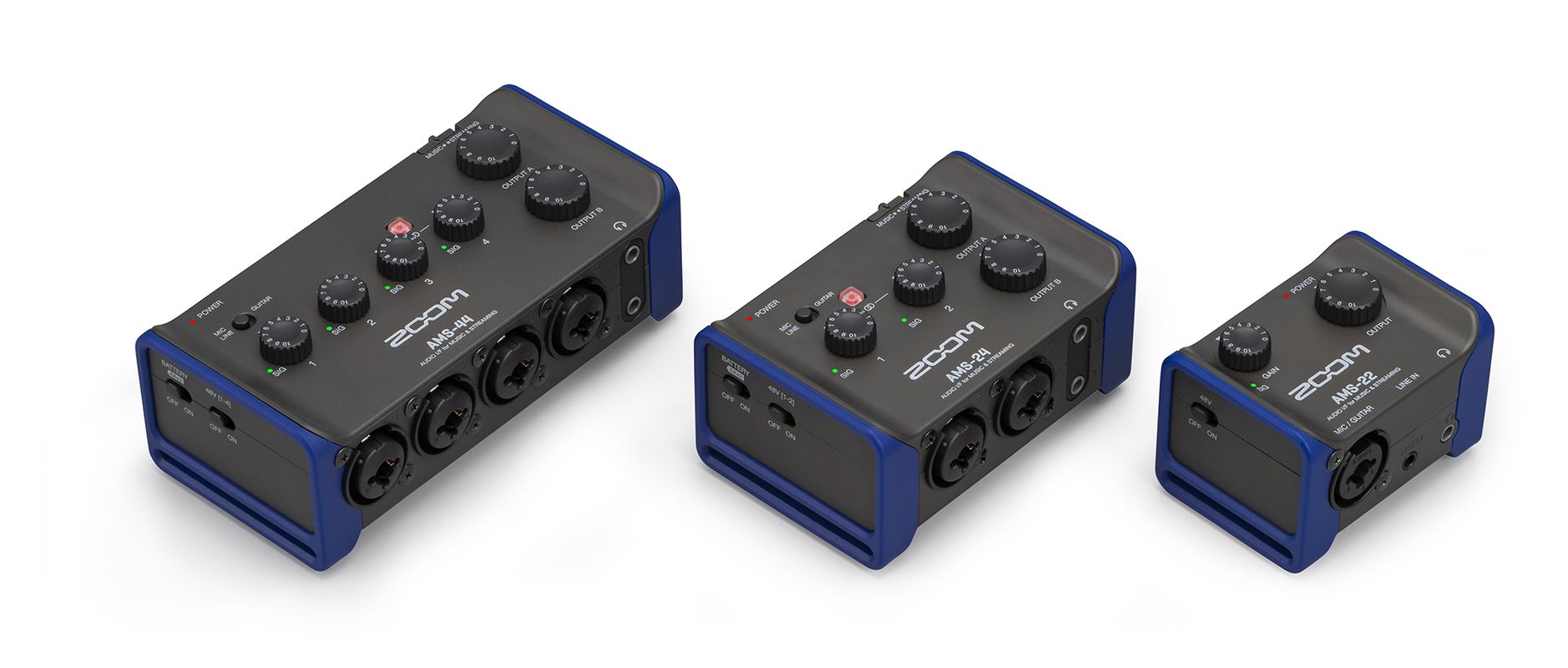

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.

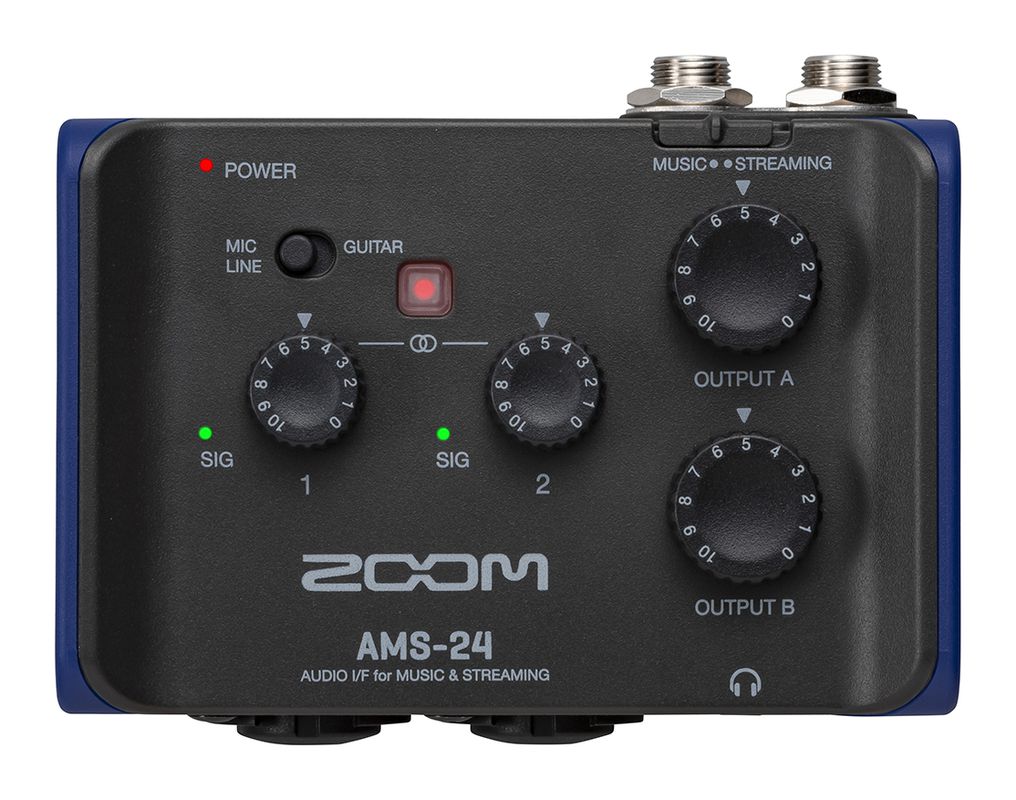

AMS-24

Input and Output Channels

NUMBER OF INPUT CHANNELS Mono (MIC/LINE) 2
NUMBER OF OUTPUT CHANNELS Stereo (TRS) 1
  Stereo (PHONES) 2

Connectors

INPUT 1–2 Type XLR/TRS combo jacks
    (XLR: 2 HOT, TRS: TIP HOT)
  Input gain ?? – +58 dB / ?? – +50 dB (when set to GUITAR)
  Input impedance XLR: 2.7 k?
    TRS: 18 k? / 330 k? (when set to GUITAR)
  Maximum input level XLR: +6 dBu
    TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
  Phantom +48 V
OUTPUT A (STANDARD PHONE JACKS) Type TRS phone jacks (impedance balanced)
  Maximum output level +10 dBu (at 0 dBFS)
  Output impedance 100 ?
OUTPUT A–B (HEADPHONE JACKS) Type 3.5mm stereo mini jacks
    30 mW + 30 mW (32 ? load)
  Output impedance 10 ?
USB   USB Type-C (audio interface function)
    • Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V   USB Type-C (for power supply)

Frequency Response

  44.1 kHz: ±1 dB (20 Hz – 20 kHz)
  96 kHz: ±1.5 dB (20 Hz – 40 kHz)

Equivalent Input Noise

  –120 dBu or less (IHF-A) at +58dB/150? input

Audio Interface

INPUT AND OUTPUT CHANNELS Recording: 2 channels
  Playback: 4 channels
SAMPLING FREQUENCIES 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH 24-bit
INTERFACE USB 2.0
CLASS USB Audio Class 2.0

Power

  2 AA batteries (alkaline, lithium, or rechargeable NiMH)
  AC adapter (ZOOM AD-17): DC 5 V/1A
  • USB bus power is supported.

Rated Current

  USB/AC adapter (5 V): 380 mA
  Batteries (2.4 V): 470 mA

Estimated continuous operation time using batteries

  44.1 kHz, 48 V off, with 32? headphone load
  Alkaline batteries: about 4 hours
  NiMH batteries (1900 mAh): about 5.5 hours
  Lithium batteries: about 11 hours
  • The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.

Power Consumption

  5 W maximum

Dimensions

  94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)

Weight (unit only)

  134 g

Weight (including batteries)

  180 g
