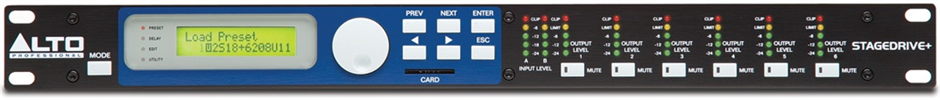

StageDrive

PC CONTROLLABLE SPEAKER MANAGEMENT SYSTEM

Configurable as a 3-way stereo crossover, 3, 4, 5 or 6-way mono crossover or distribution mixer with up to 6 outputs

Store 64 presets internally or 128 presets on a memory card

Remarkable 117dB S/N ratio via premium D/A conversion technology

Control via PC or via MIDI remote

Bessel, Butterworth and Linkwitz/Riley crossover filters

Polarity reverse and 5° phase adjustment steps allows each output phase rotation up to 360° degrees

Bessel, Butterworth and Linkwitz / Riley Crossover filters up to 48dB/oct

A/D and D/A converters with 117dB dynamic range

Each input and output includes parametric EQs

Stereo digital input in AES/EBU format

MIDI interface for the remote control

Switching power supply

Noise gate for each input and limiter for each output

Delay lines up to 2621ms for each input and up to 291ms for each output

10 factory presets / 64 user presets / 128 card presets

Memory card slot for storage of additional presets and transferring data

Dimensions (WxLxH): 19in x 11.8in x 1.7in

Weight: 18.8 lb
