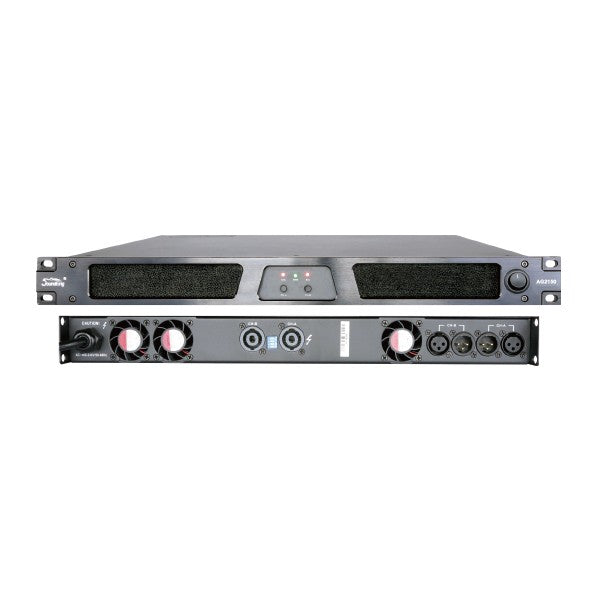

Soundking Power Amplifier AG2065/AG2100/AG2150/AG2200/AG2300

Soundking Power Amplifier AG2065/AG2100/AG2150/AG2200/AG2300

Rp 0,00

>high efficiency, energy saving;

>compact but solid structure;

>meet the requirement of production compliance and electromagnet compatibility.

>90VAC~260VAC universal power supply;

>premium components;

>variable speed fan for cooling;

>module design for convenient maintenance;

>2 channel and 4 channel design to suit for touring show;

>Reliable performance;

#

Model    AG2065           AG2100 AG2150 AG2200 AG2300
Rated power(THD=1%, continuous sine 1kHz?each channel working simultaneously) 8ohm/stereo 2×650W 2×1000W 2×1500W 2×2000W 2×3000W
4ohm/stereo 2×1100W 2×1700W 2×2550W 2×3400W 2×5100W
*2ohm/stereo 2×1870W 2×2890W 2×3570W 2×4760W 2×7140W
16ohm/bridge 1×1300W 1×2000W 1×3000W 1×4000W 1×6000W
8ohm/bridge 1×2200W 1×3400W 1×5100W 1×6800W 1×10200W
*4ohm/bridge 1×3740W 1×5780W 1×7140W 1×9520W 1×14280W
RMS output voltage (THD=1%,1kHz) 72.1V 89.4V 109.5V 126.5V 154.9V
Slope(1kHz, bypass LPF)  50V/us
Sensitivity(Rated Power,1kHz) selectable  41dB,  38dB, 35dB,  32dB
THD+N (10% rated output power) 0.01%
IMD-SMPTE(10% rated output power) 0.01%
DIM30(10% rated output power) 0.01%
Crosstalk rejection(less than rated
power?20 Hz ~1 kHz)		 ?90 dB
Frequency response(10% rated
output power 8ohm 20Hz~20 kHz)		 ±0.2dB
Input impedance 20k ohm(bal)  10k ohm(unbal)
Damping factor 8ohm 20Hz~200Hz) >=300
S/N ratio (A weighted 20Hz~20kHz)   >=108dB >=109dB >=110dB >=112dB >=115dB
Power supply 90~260VAC  50~60 Hz
protection Protection:Under voltage, DC, Over temperature; Limiter: Over temperature,Over load, Short .
Dimension (W×H×D)   483×44×370mm 483×44×465mm
Net weight   9kg 12kg
