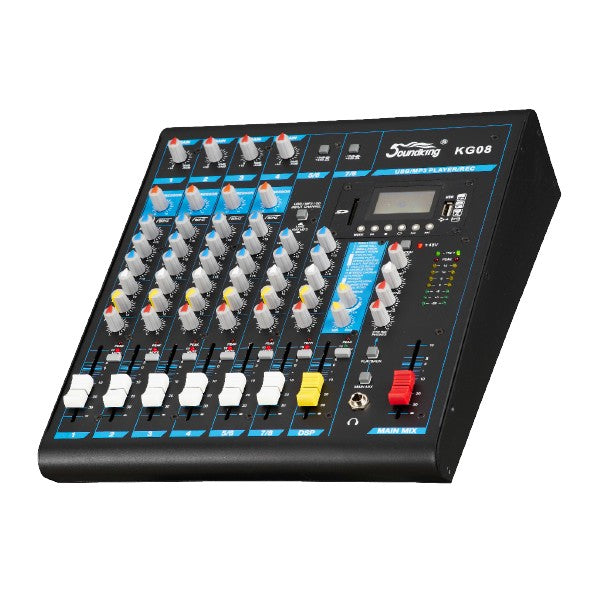

Soundking Mixing Console KG05/KG06/KG08/KG10/KG12
Soundking Mixing Console KG05/KG06/KG08/KG10/KG12
Soundking Mixing Console KG05/KG06/KG08/KG10/KG12
Soundking Mixing Console KG05/KG06/KG08/KG10/KG12
Soundking Mixing Console KG05/KG06/KG08/KG10/KG12
Soundking Mixing Console KG05/KG06/KG08/KG10/KG12

Soundking Mixing Console KG05/KG06/KG08/KG10/KG12

Rp 0,00
  • >1-8 channel input models
  • >3 Band EQ on all mic channels
  • >High pass filters and adjustable compressors on all mic channels
  • >USB/SD card recording / playback
  • >Bluetooth playback facility
  • >High quality DSP effects
  • >Ultra compact and lightweight design

Specification

Model  KG05 KG06 KG08 KG10 KG12
Inputs 5 6 8 10 12
Mic Input channels 1 2 4 6 8
Stereo Input channels 2 2 2 2 2
Gain MIN - MAX MIN - MAX MIN - MAX MIN - MAX MIN - MAX
Mic +6dB - +50dB +6dB - +50dB +6dB - +50dB +6dB - +50dB +6dB - +50dB
Line +10dB - -34dB +10dB - -34dB +10dB - -34dB +10dB - -34dB +10dB - -34dB
EIN -100dB -100dB -100dB -100dB -100dB
Frequency response
Mic Channel 10Hz - 20kHz +1/-3 10Hz - 20kHz +1/-3 10Hz - 20kHz +1/-3 10Hz - 20kHz +1/-3 10Hz - 20kHz +1/-3
THD Mic Channel ?0.03% ?0.03% ?0.03% ?0.03% ?0.03%
Signal to noise ratio 80dB 80dB 80dB 80dB 80dB
Output Levels MAX +27(BAL) MAX +27(BAL) MAX +27(BAL) MAX +27(BAL) MAX +27(BAL)
  MAX +22(UNBAL) MAX +22(UNBAL) MAX +22(UNBAL) MAX +22(UNBAL) MAX +22(UNBAL)
Channel  EQ
Hi 12kHz 12kHz 12kHz 12kHz 12kHz
Mid 2.5kHz 2.5kHz 2.5kHz 2.5kHz 2.5kHz
Lo 45Hz 45Hz 45Hz 45Hz 45Hz
Lo Cut / 80Hz 80Hz 80Hz 80Hz
MP3/USB/SD Audio  YES YES YES YES YES
playback
USB/SD Audio recording YES YES YES YES YES
DSP Effects NO YES YES YES YES
CEHO Effects YES NO NO NO NO
Power requirements 100V - 240V 100V - 240V  100V - 240V  100V - 240V  100V - 240V ~
Dimensions (W x H x D) 195x80x270(mm)  227x70x359(mm) 283x70x359(mm) 339x70x359(mm) 395x70x359(mm)
