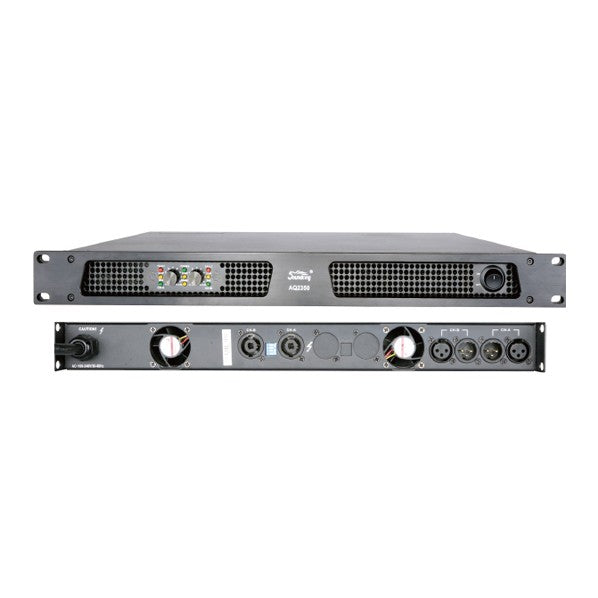

Soundking AQ2150/AQ2250/AQ2350/AQ2450 Digital Power Amplifier

Soundking AQ2150/AQ2250/AQ2350/AQ2450 Digital Power Amplifier

Rp 0,00

> high efficiency, energy saving;

> active PFC, power factor 0.99

> high output to drive 2 Ohm load stably;

> compact but solid structure;

> perfect protection;

> meet the requirement of production compliance and electromagnet compatibility.

> Variable speed fan for cooling;



Introduction?

AQ series digital power amplifier is suitable for demanding conference system, entertainment or small touring show.

This series digital power amplifier features perfect protection, reliable performance, PFC and harmonic soft start switching mode power supply technology, 90~260VAC universal voltage.



Function

> stereo/mono/bridge operation modes;

> sensitivity 1Vrms, gain 32dB, 26dB for option

> XLR input connector;

> professional speaker connector;

> output over load/short circuit protection;

> DC output protection;

> 70? power compression;

> thermal protection;

> Thermal indication;

Model    AQ2150 AQ2250 AQ2350 AQ2450
Rated power(EIAJ THD=1%,1kHz?2 CH working simultaneously) 8?/ stereo 2×150W 2×250W 2×350W 2×450W
4?/ stereo 2×255W 2×425W 2×595W 2×765W
*2?/ stereo 2×435W 2×725W 2×1015W 2×1300W
16?/ bridged 1×300W 1×500W 1×700W 1×900W
8?/ bridged 1×510W 1×850W 1×1190W 1×1530W
*4?/ bridged 1×870W 1×1450W 1×2030W 1×2600W
RMS output voltage(THD=1%,1kHz) 34.6V 44.7V 52.9V 60.0V
Slew rate( 1kHz, low-pass filter bypassed) 50V/us
Sensitivity(Rated Power,1kHz) selectable  35dB,  32dB,  29dB,  26dB
THD+N (10%  rated output power?) 0.02%
IMD-SMPTE(10%  rated output power?) 0.02%
DIM30(10%  rated output power?) 0.02%
Crosstalk rejection?less than rated power?20 Hz -1 kHz)  ?90 dB
Frequency response(10%  rated output power?8??20Hz - 20 kHz) ±0.2dB
Input impedance 20k?(bal) ?10k?(unbal)
Damping factor(8??20 Hz -100 Hz) ?300
S/N ratio (A weighted?20Hz-20kHz)   ?105dB ?104dB ?103dB ?100dB
Power supply 90~260VAC? 50~60 Hz
protection Protection:Under voltage, DC, Over temperature; Limiter: Over temperature,Over load, Short
dimension(W×H×D) 483×44×370mm
Net weight 9kg
