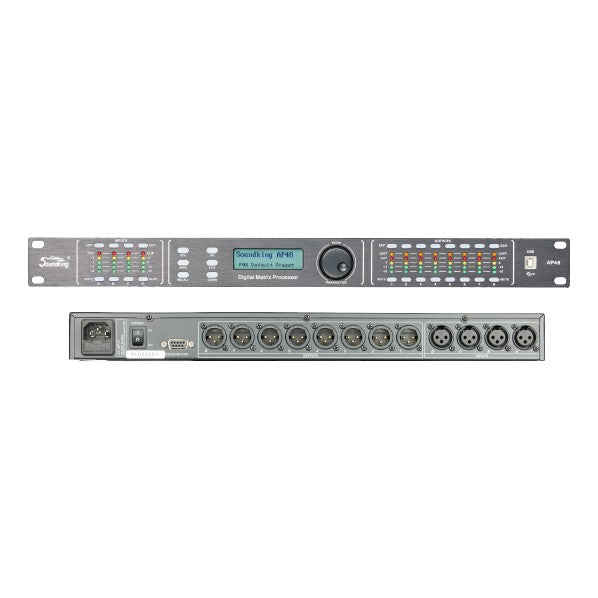

Soundking AP24/AP36/AP48

> 2 x 4 digital matrix processor, 2CH bal input, 4CH bal output;

3 x 6 digital matrix processor, 3CH bal input, 6CH bal output;

4 x 8 digital matrix processor, 4CH bal input, 8CH bal output;

24bit 48kHz sampling rate, ?-? AD/DA converter, 32bit DSP chip; > Input section includes 8 processing units - gain, mute, noise gate, high cut, low cut, 8 PEQ, phase, delay;

> Output section includes 7 processing units - crossover, 5 PEQ, gain, mute, limit, phase, delay;

> Free matrix distribution between all inputs and outputs;

> Crossover, gain and band width of all PEQ adjustable, type: peak, high shelving, low shelving;

> Type of all high/low cut filter and crossover: Butterworth, Linkwitz-Riley, Bessel, -6dB/Oct to -48dB/Oct slope, 20Hz~20kHz frequencies continuously adjustable;

> Threshold, ratio, start time and recovery time of all limiter/compressor continuously adjustable;

> Threshold, start time and recovery time of all noise gate continuously adjustable;

> Maximum 682ms delay time for all delay module;

> Free copying of parameters between any channels;

> Built-in signal generator, pink/white noise output mode, 20Hz to 20kHz sine wave adjustable, signal amplitude adjustable;

> 2x20 LCD screen, custom buttons with lamp, one button operation, easy and fast;

> 32 user presets, each preset saved or called alone, password protection supported;

> PC software remote control via USB or RS232;

>Cascade control over as many as 256 units via RS485, remote network control by center control system supported.
