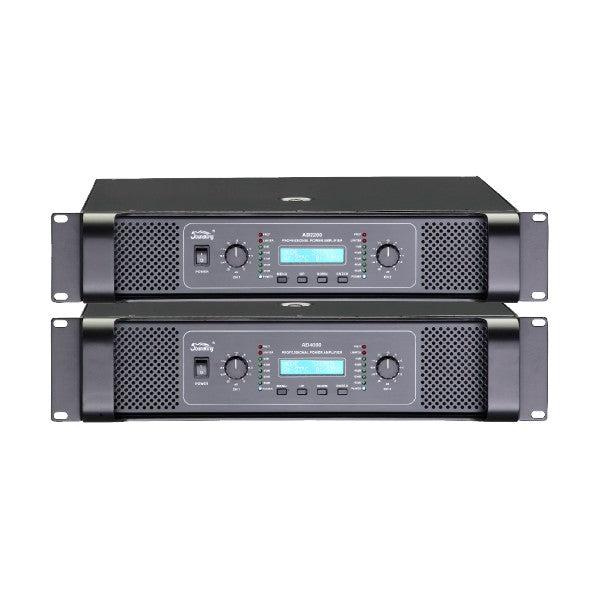

Soundking AD600/AD900/AD1500/AD2200/AD3000/AD4000 Professional Power Amplifier

Soundking AD600/AD900/AD1500/AD2200/AD3000/AD4000 Professional Power Amplifier

Rp 0,00

> 2U/3U height, compact contour;

> Class AB&H circuit

> Professional protection

> Dual side PCB and SMD to improve the stability;

> Variable speed fan for cooling;

> Stereo/parallel/bridge mode

> Light weight for easy transportation



Introduction?

AD series features compact contour, perfect tone, excellent performance, unique circuit, high load capacity and perfect protection, including DC/input limit/over-load output/short-circuit/thermal/power surge/soft-start protection and limit/compression to ensure the reliable performance.

MODEL AD600 AD900 AD1500 AD2200 AD3000 AD4000
Stereo power 8? 2x200W 2x300W 2x500W 2x700W 2x1050W 2x1200W
Stereo power 4? 2x300W 2x450W 2x750W 2x1100W 2x1500W 2x2000W
Bridge power 8? 600W 900W 1500W 2200W 3000W 4000W
Frequency response(@1W) 20Hz-20kHz ±0.5dB
THD(rated output power) ?0.05% ?0.05% ?0.05% ?0.05% ?0.05% ?0.05%
Damping factor (1kHz 8?) ?200 ?300 ?300 ?300 ?300 ?300
S/N ratio (A weighted) ?100dB ?100dB ?100dB ?100dB ?100dB ?100dB
Input sensitivity 0dBu 0dBu 0dBu 0dBu 0dBu 0dBu
Crosstalk (A weighted) ?70dB ?70dB ?70dB ?70dB ?70dB ?70dB
Protection Limit/thermal/DC/short circuit/delay start protection
Voltage AC230V/50Hz
Dimension ((W×D×H)mm 483x320x88.8 483x320x88.8 483x320x88.8 483x380x88.8 483x495x133.3 483x495x133.3
Weight 14kg 16kg 17kg 21.5kg          31kg 38kg
