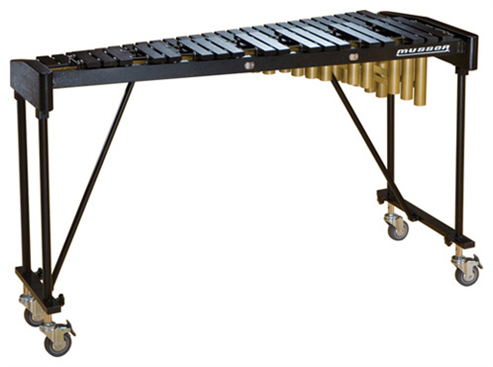

Musser M47 Xylophone Kit

RANGE: 3.5 Octaves-37 Notes - F4 TO C8

BAR SIZES: Length of low note 10-3/4" graduating down to 4-15/16" highest note

WIDTH AND THICKNESS: C5 to C8 1-1/2" wide by 5/8" thick

PITCH: Bars tuned to A-442 Pitch

MATERIAL: Kelon

FINISH: Black bar lacquer

RESONATOR SPECIFICATIONS:

MATERIAL: Aluminum Alloy Tubing.

FINISH: Resonators are painted with a gold colored coating

CONSTRUCTION: Braces are 1/8" aluminum riveted to aluminum resonators.

END FRAMES: The frame is made of solid wood and painted to a black finish. The end supports are made of steel tubing and fold for transport. Size: High End 13-1/4" wide, Low End 21-1/2" wide, 45-1/4" long. The M41 is height adjustable from 32-1/2" to 37-3/8" tall. The total weight is approximately 50 lbs.
