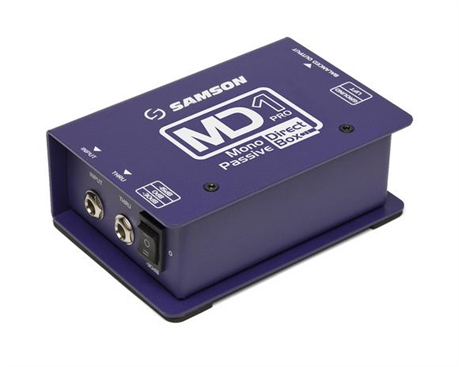

MD1 Pro - Mono Passive Direct Box

To The Max.

The Samson MD1 Pro Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality solutions for line, instrument and speaker level signals. The MD1 Pro allows balanced lines to be sent from your instrument long distances without inducing noise.

Custom STLX Transformer

The MD1 Pro features Samson's STLX Mu-Metal shielded transformer that delivers an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD1 Pro's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. The MD1 Pro also includes a 3-position 0dB/-15dB/-30dB attenuation switch to toggle between line and speaker level signals.

All-metal, impact resistant design

Samson STLX Mu-Metal shielded transformer

3-position 0dB/-15dB/-30dB attenuation switch

Ground Lift switch

1/4" Input and Thru

Balanced XLR output

No Phantom or Battery power required

Frequency response of 18Hz–40kHz
