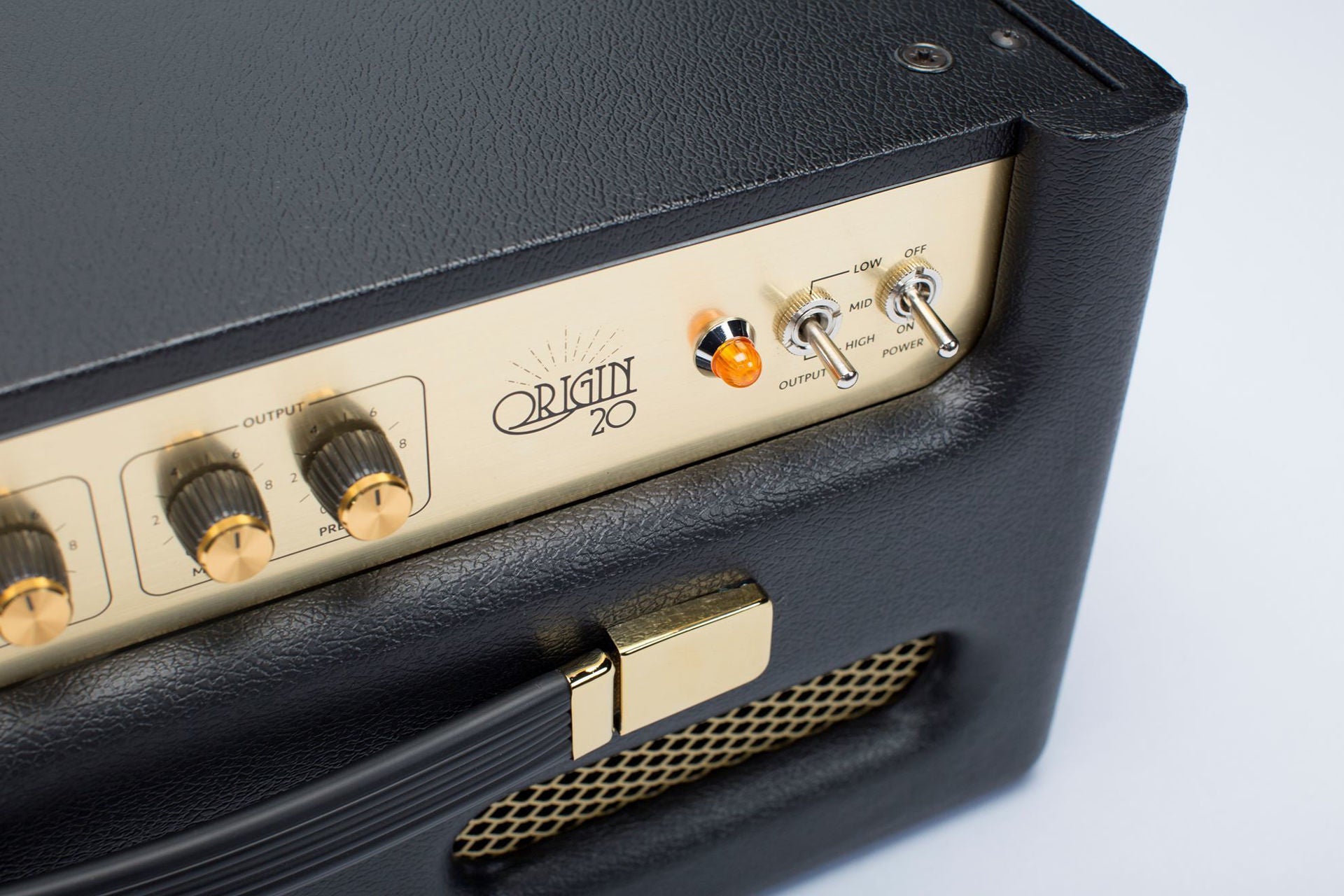

Marshall ORIGIN20C

This 20W combo is designed for those that like expression through innovation. Using a Celestion V type speaker the Origin20CTM provides a classic all-valve Marshall tone. A 2-way footswitch allows you to control the gain boost and turn the FX loop on and off. With classic styling and modern features this amp generates rich, harmonic tones so that you can craft a sound to suit your personality.

ADD A LITTLE BOOST

Using the footswitchable gain boost feature you can add that extra level of gain to generate a more overdriven tone.

YOU HAVE THE POWER

Our new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes to suit your environment, from playing small venues to playing in your bedroom.

TILT YOUR SOUND

It may only have one channel but don’t underestimate it. By using the tilt control you can blend the voice between the normal tone and a high treble tone.

CONTROL YOUR TONE

Using the presence control you can increase the high frequency and increasing the master volume can give you that classic overdrive sound.

TECHNICAL SPECIFICATION

GENERAL

Model

Origin20C

Range

Origin

Technology

Valve

Channels

1

ELECTRONICS

Output wattage

High power 20W, mid power approx 3W and low power approx 0.5W

Outputs

Speaker outputs: 3 x 1/4" jack sockets (16O load / 8O load), DI out (1/4" jack)

Inputs

1 x 1/4" jack instrument input, footswitch

Controls

Gain, boost, tilt, bass, middle, treble, master, presence, powerstem

Effects

None

Effects loop

Yes, Series, Send/Return

SPEAKERS

Speaker configuration

1x10"

Speaker model

Celestion V type (16O, 50W)

Unit impedance

16O

VALVES

Preamp valves

3 x ECC83

Power amp valves

2 x EL34

ACCESSORIES

Footswitch

PEDL-90016 included

Cable

Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight

13.9 kg / 31 lbs

Width

520 mm / 20.5"

Height

420 mm / 16.5"

Depth

240 mm / 9.4"
