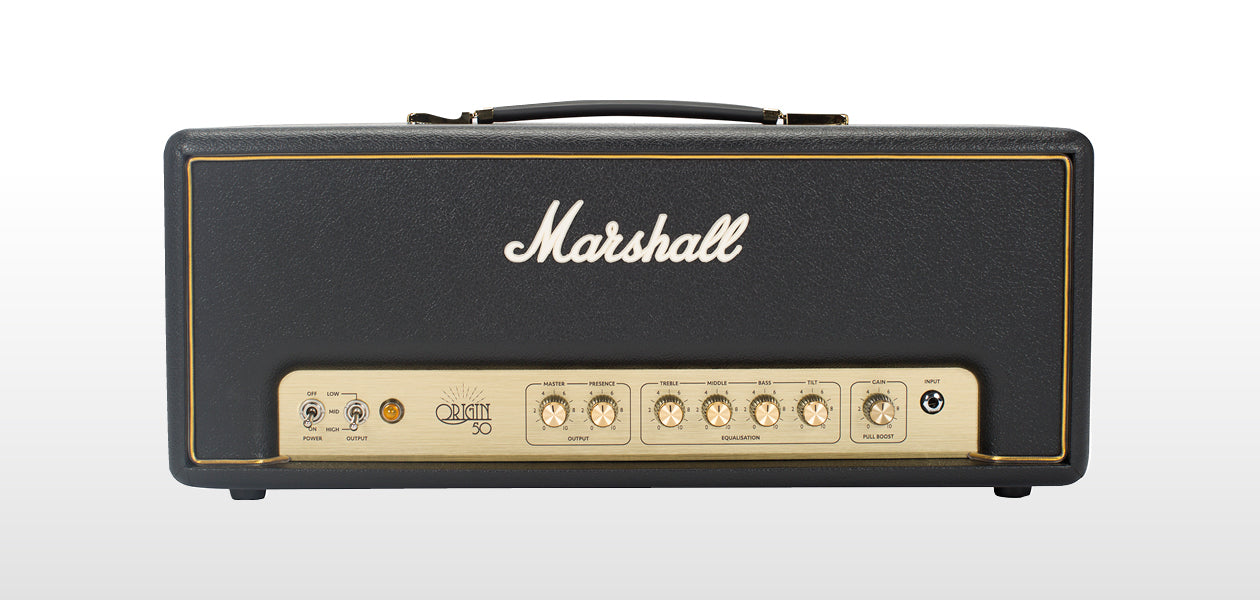

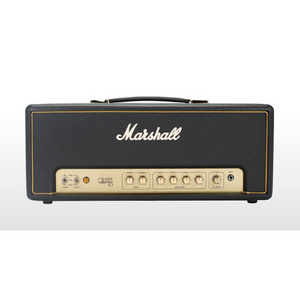

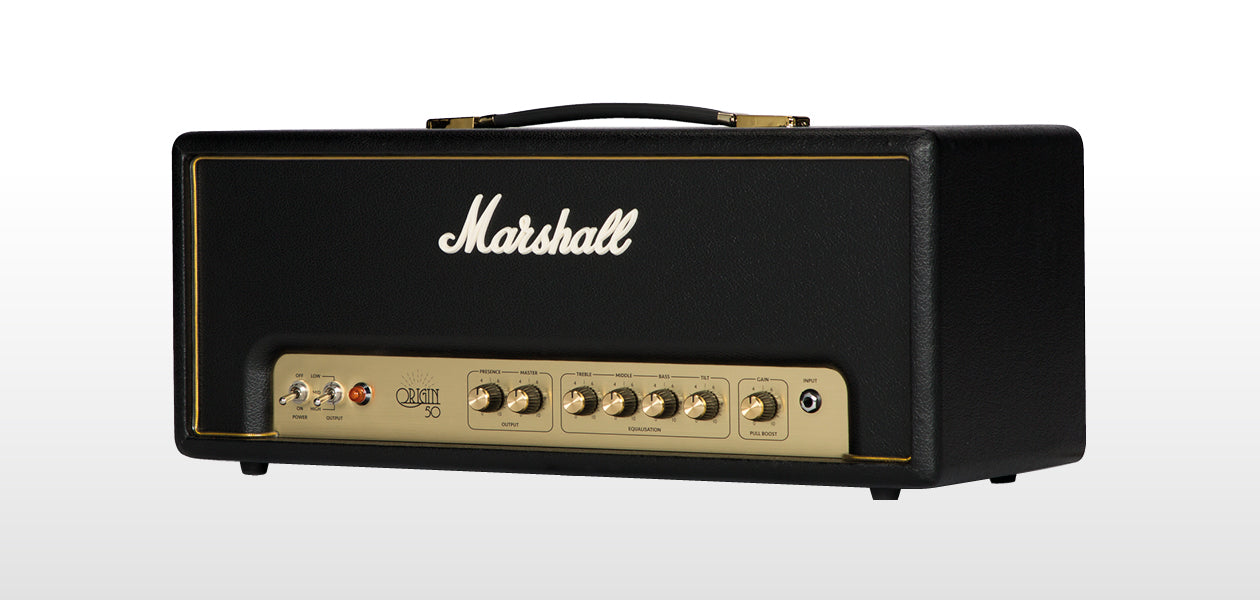

Marshall ORIGIN ORI50H

This 50W head enables you to express your personality. The Origin50HTM delivers classic, rich and harmonic tones with a contemporary, sleek style. This all-valve amp has power reducing features making it ideal for different environments from performing on stage to recording in the studio. With a 2-way footswitch available you can turn the gain boost and the FX loop on and off.

KEY FEATURES

ADD A LITTLE BOOST

The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.

YOU HAVE THE POWER

To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM that allows you to have high, medium or low power modes.

TILT YOUR SOUND

With one channel, this amp still offers two voices, normal and high treble. By using the tilt control you can blend your sound between these two voices to access the one you prefer.

CONTROL YOUR TONE

Crank up the master volume to get a classic overdrive sound and using the presence control you can increase the high frequency.

TECHNICAL SPECIFICATION

GENERAL

Model

Origin50H

Range

Origin

Technology

Valve

Channels

1

ELECTRONICS

Output wattage

High power 50W, mid power approx 10W and low power approx 5W

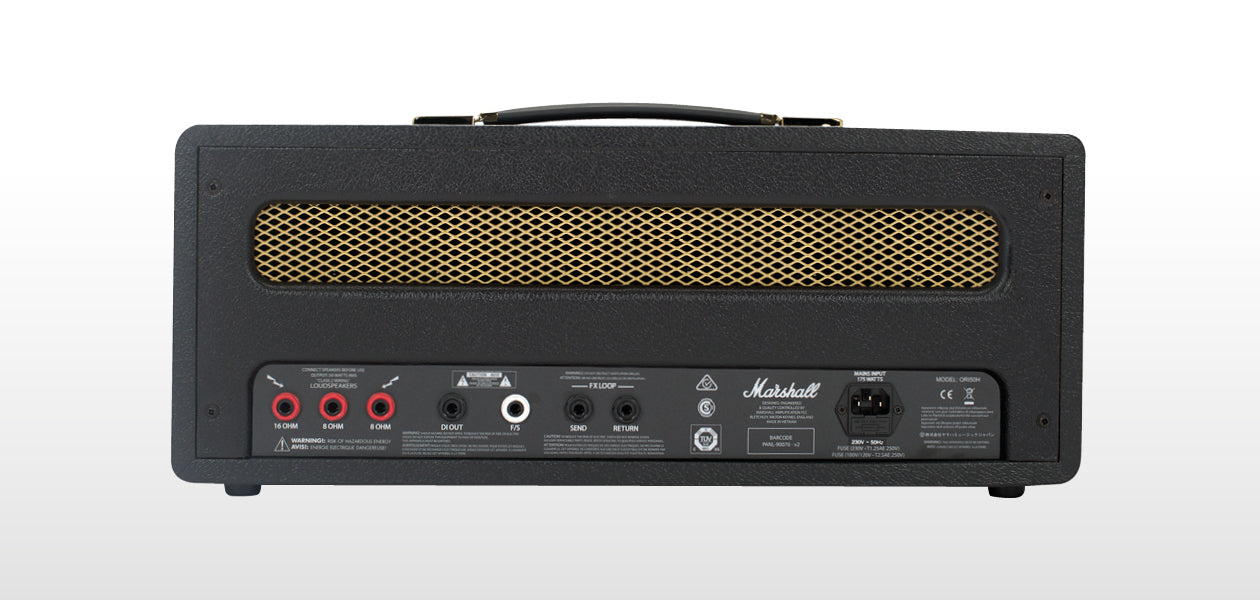

Outputs

Speaker outputs: 3 x 1/4" jack sockets (16? load / 8? load), DI out (1/4" jack)

Inputs

1 x 1/4" jack instrument input, footswitch

Controls

Gain, boost, tilt, bass, middle, treble, master, presence, powerstem

Effects

None

Effects loop

Yes, Series, Send/Return

VALVES

Preamp valves

3 x ECC83

Power amp valves

2 x EL34

ACCESSORIES

Footswitch

PEDL-90016 included

Cable

Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight

11.8 kg / 26 lbs

Width

577 mm / 22.7"

Height

228 mm / 9"

Depth

225 mm / 8.9"
