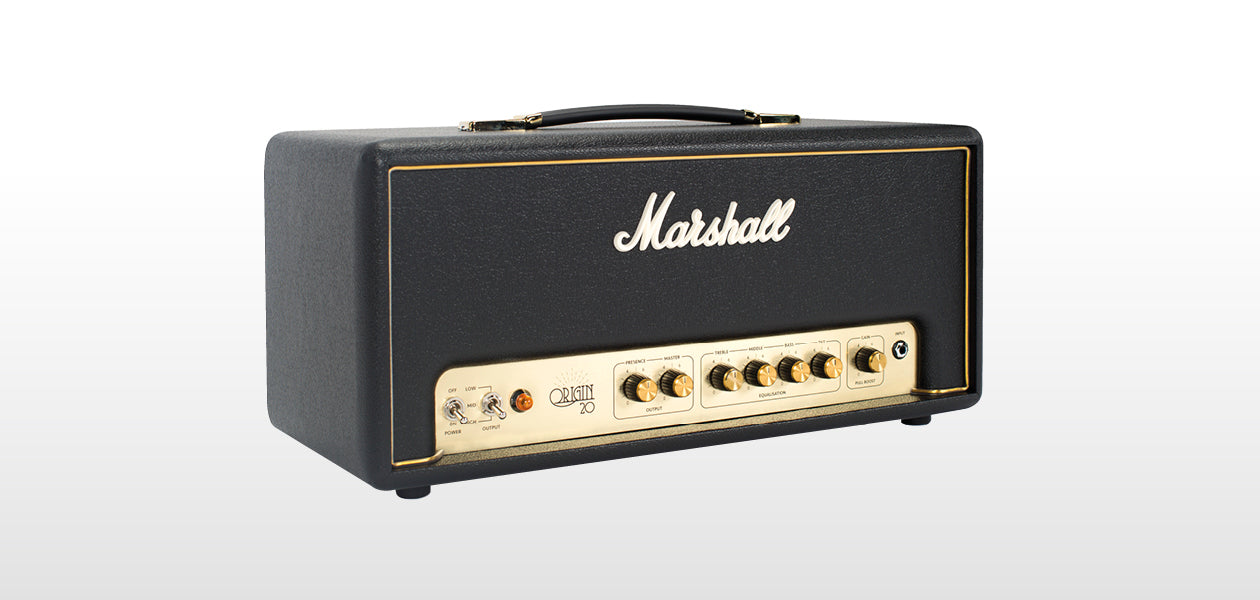

Marshall ORIGIN ORI20H

Express your personality with this 20W head. The Origin20HTM provides a classic all-valve, rich and harmonic tone. With sleek styling and modern features this amp is ideal for playing in different environments from bedroom to rehearsal studios and small venues. There is a 2-way footswitch available so you can control the gain boost feature and turn the FX loop on and off.

ADD A LITTLE BOOST

The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.

YOU HAVE THE POWER

To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes.

TILT YOUR SOUND

With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.

CONTROL YOUR TONE

Increasing the master volume can give you that classic overdrive sound and using the presence control you can increase the high frequency.

TECHNICAL SPECIFICATION

GENERAL

Model

Origin20H

Range

Origin

Technology

Valve

Channels

1

ELECTRONICS

Output wattage

High power 20W, mid power approx 3W and low power approx 0.5W

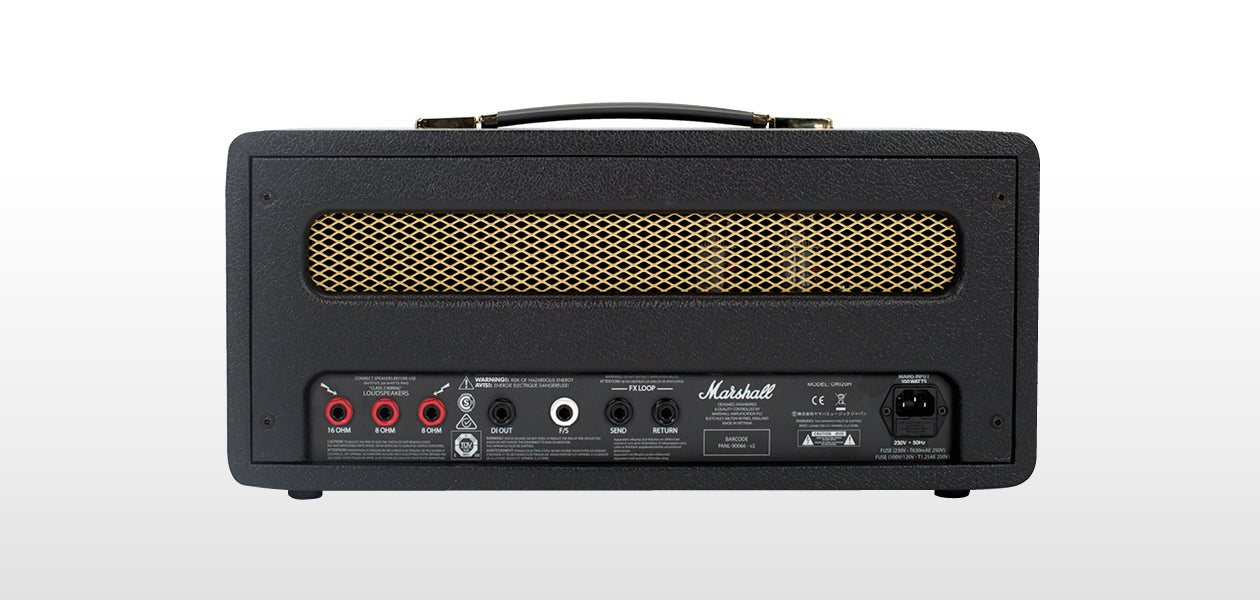

Outputs

Speaker outputs: 3 x 1/4" jack sockets (16O load / 8O load), DI out (1/4" jack)

Inputs

1 x 1/4" jack instrument input, footswitch

Controls

Gain, boost, tilt, bass, middle, treble, master, presence, powerstem

Effects

None

Effects loop

Yes, Series, Send/Return

VALVES

Preamp valves

3 x ECC83

Power amp valves

2 x EL34

ACCESSORIES

Footswitch

PEDL-90016 included

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight

9.4 kg / 21 lbs

Width

520 mm / 20.5"

Height

225 mm / 8.9"

Depth

220 mm / 8.7"
