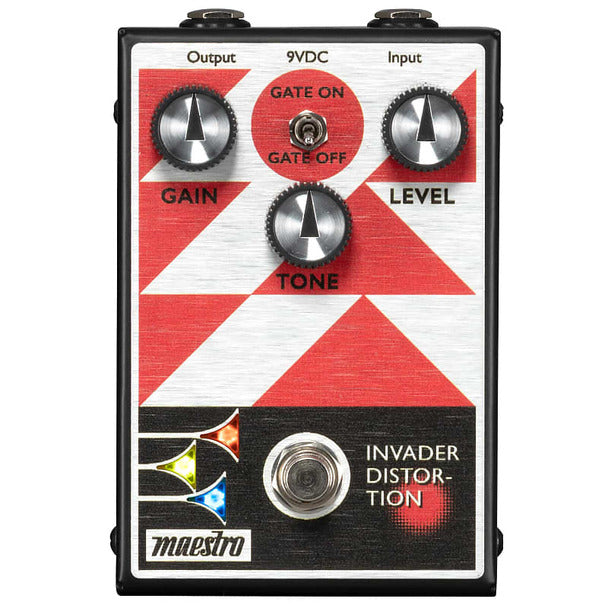

Maestro Invader Distortion Effects Pedal MOCIDP

Name                                Maestro Invader Distortion

Switches                           True Bypass footswitch, Gate On/Gate Off toggle switch

Led Indicators                    Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active

Signal Processing               All-Analog

Power Requirements          9V battery or regulated 9VDC power supply (5.5 X 2.1 mm plug, wired center-negative)

Current Draw                           56.7 mA

Power On Switch

Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.

Input Impedance                      100 kOhms

Output Impedance                   100 Ohms

Switching Type                         True Bypass

Dimensions                               5.04" x 3.45" x 2.5" (128.0 mm x 87.6 mm x 63.5 mm)

Weight                                       Net: 1.24 lb. (562.5 gm.) Gross: 1.62 lb. (734.8 gm.)
