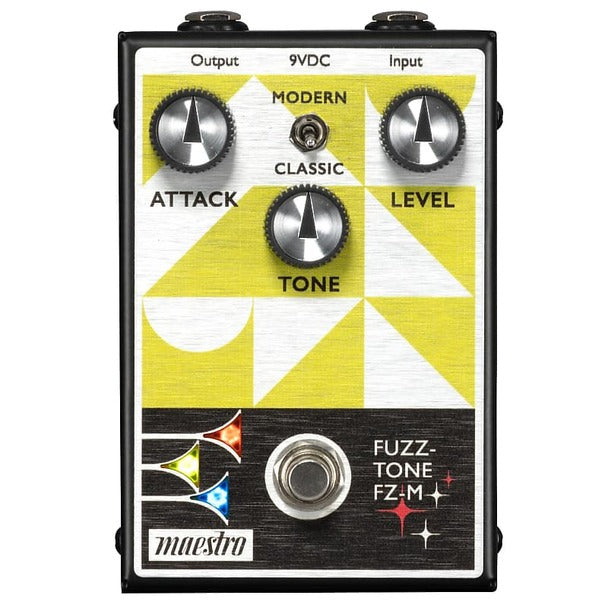

Maestro Fuzz Tone Fuzz FZ-M Effects Pedal MOCFTP

Controls: Attack, Tone, Level
Switches: True Bypass footswitch, Modern/Classic Mode toggle switch
LED Indicators: Red, yellow, and blue bugles in the Maestro logo
illuminate when the pedal is active
Signal Processing: All-Analog
Power Requirements: 9V battery or regulated 9VDC power supply
(5.5 x 2.1mm plug, wired center-negative)
Current Draw: 21 mA
Power On Switch: Incorporated into the input jack. Unplug the input when
not in use to prevent battery drain. Remove the battery when the pedal is
going to be stored for long periods to prevent leakage and damage.
Input Impedance: 32K ohms
Output Impedance: 5K ohms
Switching: True Bypass
Dimensions (D x W x H): 5.04” x 3.45” x 2.5”, including feet, knobs, jacks, etc.
Weight (Including Battery): 1.23 lb. / 557.92 gm.
SKU: MOCFTP
