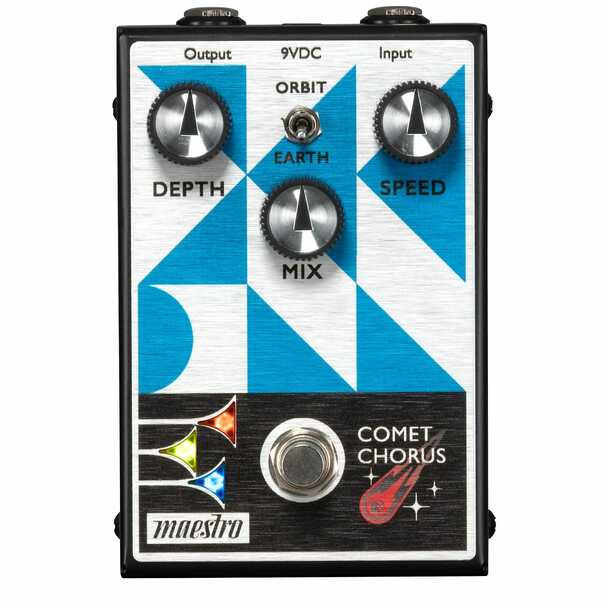

Maestro Comet Chorus Effects Pedal MOCCCP

Controls: Depth, Mix, Speed; internal Orbit amount trim pot
Internal Trim Pot: The internal trim pot labeled Orbit allows the user to
adjust the amount of the rotary speaker-style effect that is blended into
the sound when the Mode switch is in the Orbit position. Using a small
screwdriver, turn clockwise to increase, counterclockwise to decrease the
amount of the Orbit effect.
Switches: True Bypass footswitch, Orbit/Earth Mode toggle switch
LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate
when the pedal is active
Signal Processing: All-Analog
Power Requirements: 9V battery or regulated 9VDC power supply
(5.5 x 2.1mm plug, wired center-negative)
Current Draw: 55.4 mA
Power On Switch: Incorporated into the input jack. Unplug the input when not in
use to prevent battery drain. Remove the battery when the pedal is going to be
stored for long periods to prevent leakage and damage.
Input Impedance: 470K ohms
Output Impedance: 1K ohms
Switching: True Bypass
Dimensions (D x W x H): 5.04” x 3.45” x 2.5”, including feet, knobs, jacks, etc.
Weight (Including Battery): 1.25 lb. / 566.99 gm.
