JOYO JW-02 Digital Wireless Transmitter and Receiver

JW-02 features 4 channels, when several sets of JW-02 are being used simultaneously, you can choose different channels on your own to avoid interference.

If the red light flashes after you switch on the transmitter or the receiver, it indicates low battery, please charge it in time with the USB cable.

Signal distortion<0>Plug and play, user-friendly

#

Parameters of JW-02 transmitter

Built-in: lithium battery

Battery: 3.7V 500mAh

Transmit power: 7dBm

Operating frequency: 5.8GHz frequency band

Anti-jamming method: adaptive frequency hopping

Frequency response: 20Hz - 20kHz

Delay:

Sample rate: 24-bit /48kHz

Power: DC5V/500mA

Input Impedance: 220KO

Plug’s type: 6.35mm mono plug

Dimensions: 38*50*114mm

Weight: 49g

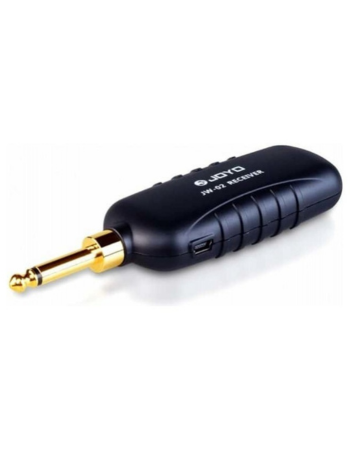

Parameters of JW-02 receiver:

Built-in: lithium battery

Battery: 3.7V 500mAh

Reception sensitivity: -85dBm

Received frequency: 5.8GHz frequency band

Anti-jamming method: adaptive frequency hopping

Signal distortion: <0>

Gain: 0 dB

SNR: 105dB

Frequency response: 20Hz - 20kHz

Delay:

Sample rate: 24-bit /48kHz

Power: DC5V/500mA

Output Impedance: 100O

Plug’s type: 6.35mm mono plug

Dimensions: 40*20*129mm

Weight: 50g
