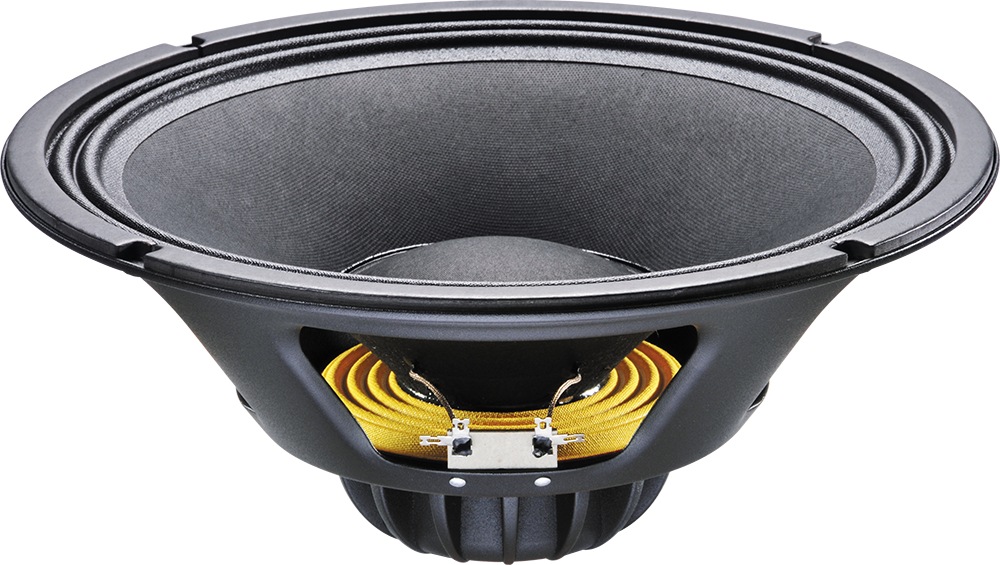

Celestion TN1225 (Legacy)
Celestion TN1225 (Legacy)

Celestion TN1225 (Legacy)

Rp 0,00
Regular price Rp 0,00


Nominal Diameter                          305mm/12in

Nominal Power Rating                    250W

Continuous Power Rating               500W

Sensitivity                                        99dB

Rated Impedance                            8?

Frequency Range                            50Hz-4000Hz

Voice coil diameter (mm)                 64mm

Voice coil diameter (in)                    2.5in

Chassis Type                                   Pressed steel

Magnet Type                                    Neodymium

Voice coil material                            Round copper

Former Material                                Polyimide

Cone material                                   Kevlar loaded paper

Surround Material                             Cloth-sealed

Suspension                                       Single

Xmax                                                 2.5mm/0.1in

Gap Depth                                         8mm/0.32in

Voice coil winding width                    13mm/0.51in




Packed Dimensions & Weight

Single pack size W x D x H     330mm x 330mm x 150mm/13.0in x 13.0in x 5.9in

Single pack weight                   2.4kg/5.3lb



Mounting Information

Mounting slot dimensions                7.9mm/0.31in Ø

Mounting slot PCD                           297mm/11.69in

Number of mounting slots               4

Overall Depth                                  132mm/5.2in

Overall Diameter (mm)                    309mm

Overall Diameter (in)                        12.17in

Cut-out diameter                               283mm/11.14in

Unit Weight                                        2.0kg/4.4lb



Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous Power Rating is defined as 3dB greater than the AES rating.

Sensitivity measured on axis at 1W, 1m in 2? anechoic environment.


Xmax is derived from: (voice coil winding width-gap depth)/2.






Free delivery and shipping
Secure online payment
Free delivery and shipping
Secure online payment
Free delivery and shipping
Secure online payment
fast global shipping
Free returns
100% secure payments
Free climate compensated shipping
fast global shipping
Free returns
100% secure payments
Free climate compensated shipping

More info

Description


Nominal Diameter                          305mm/12in

Nominal Power Rating                    250W

Continuous Power Rating               500W

Sensitivity                                        99dB

Rated Impedance                            8?

Frequency Range                            50Hz-4000Hz

Voice coil diameter (mm)                 64mm

Voice coil diameter (in)                    2.5in

Chassis Type                                   Pressed steel

Magnet Type                                    Neodymium

Voice coil material                            Round copper

Former Material                                Polyimide

Cone material                                   Kevlar loaded paper

Surround Material                             Cloth-sealed

Suspension                                       Single

Xmax                                                 2.5mm/0.1in

Gap Depth                                         8mm/0.32in

Voice coil winding width                    13mm/0.51in




Packed Dimensions & Weight

Single pack size W x D x H     330mm x 330mm x 150mm/13.0in x 13.0in x 5.9in

Single pack weight                   2.4kg/5.3lb



Mounting Information

Mounting slot dimensions                7.9mm/0.31in Ø

Mounting slot PCD                           297mm/11.69in

Number of mounting slots               4

Overall Depth                                  132mm/5.2in

Overall Diameter (mm)                    309mm

Overall Diameter (in)                        12.17in

Cut-out diameter                               283mm/11.14in

Unit Weight                                        2.0kg/4.4lb



Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous Power Rating is defined as 3dB greater than the AES rating.

Sensitivity measured on axis at 1W, 1m in 2? anechoic environment.


Xmax is derived from: (voice coil winding width-gap depth)/2.
