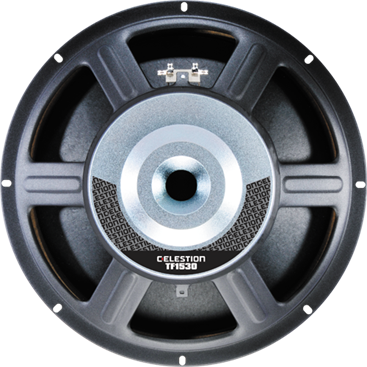

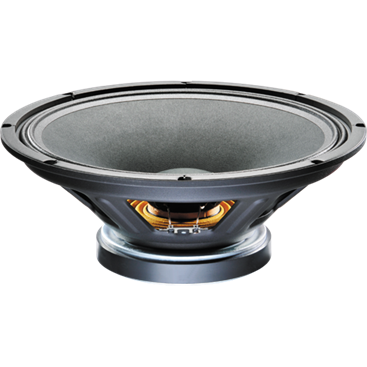

Celestion LF Pressed Chassis Ferrite TF1530

* High output 15" bass and mid-range driver

* Efficient magnet assembly enables 99dB sensitivity and 400Wrms (AES standard) power handling

* 3" high temperature copper voice coil wound on polyimide for increased reliability

* Double roll surround for greater excursion control

* Superb price/performance ratio

8 Ohm Frequency Response

1. Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

2. Measured on axis at 1W, 1m in 2p anechoic environment.

3. Xmax derived from: (voice coil winding width-gap depth)/2.

#

General

* Nominal diameter 381mm/15in

* Power rating (1) 400Wrms

* Nominal impedance 8 Ohm

* Sensitivity (2) 99dB

* Frequency range 40-3000Hz

* Voice coil diameter 75mm/3in

* Chassis type Pressed steel

* Magnet type Ferrite

* Magnet weight 2.44kg/86oz

* Coil material Round copper

* Former material Polyimide

* Cone material Kevlar loaded paper

* Surround material Cloth-sealed

* Suspension Single

* Xmax (3) 2mm/0.08in

* Gap depth 8mm/0.31in

* Voice coil winding width 12mm/0.47in

Small Signal Parameters

* D 0.33m/12.99in

* Fs 45Hz

* Mms 91.85g/3.24oz

* Qms 4.20

* Qes 0.42

* Mmd 77.70g/2.74oz

* Qts 0.38

* Re 5.70O

* Vas 141.2lt/4.99ft3

* BI 18.70Tm

* Cms 0.14mm/N

* Rms 6.13kg/s

* Le (at 1kHz) 1.08mH

Mounting Information

* Diameter 385mm/15.16in

* Overall depth 163mm/6.42in

* Cut-out diameter 352mm/13.86in

* Mounting slot dimensions 9.2mmx6.2mm/0.36inx0.24in

* Number of mounting slots 8

* Mounting PCD range 369mm/14.56in

* Unit weight 6.1kg/13.4lb

Packed Dimensions & Weight

* Single pack size W x D x H 410mm x 410mm x 180mm / 16.1in x 16.1in x 7.1in

* Single pack weight 8kg/17.6lb

* Multipack (45) size W x D x H 1200mmx1000mmx980mm / 47.2in x 39.4in x 38.6in

* Multi pack (45) weight 320kg/700lb
