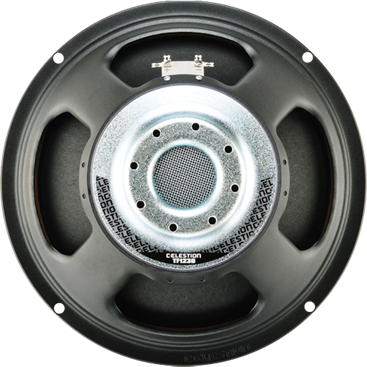

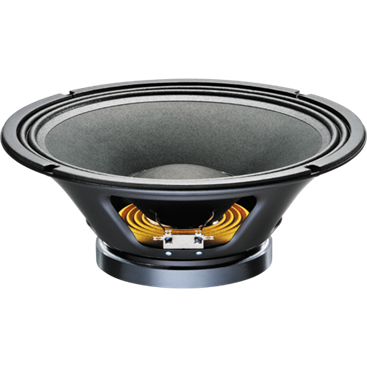

Celestion LF Pressed Chassis Ferrite TF1230

* 12" Bass and mid-range driver providing 94dB sensitivity and 350Wrms (AES standard) power handling

* 3" high temperature copper voice coil wound on polyimide for increased reliability

* Kevlar-loaded cone with sealed surround and damping for reduced distortion.

* Double roll surround for greater excursion control

* For use in 2-way or compact 3-way systems

8 Ohm Frequency Response

1. Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

2. Measured on axis at 1W, 1m in 2p anechoic environment.

3. Xmax derived from: (voice coil winding width-gap depth)/2.

#

General

* Nominal diameter 305mm/12in

* Power rating (1) 350Wrms

* Nominal impedance 8 Ohm

* Sensitivity (2) 94dB

* Frequency range 45-3000Hz

* Voice coil diameter 75mm/3in

* Chassis type Pressed steel

* Magnet type Ferrite

* Magnet weight 1.4kg/48oz

* Coil material Round copper

* Former material Polyimide

* Cone material Kevlar loaded paper

* Surround material Cloth-sealed

* Suspension Single

* Xmax 35mm/0.19in

* Gap depth 8mm/0.24in

* Voice coil winding width 17.5mm/0.69in

Small Signal Parameters

* D 0.26m/0.24in

* Fs 56.9Hz

* Mms 58.59g/2.07oz

* Qms 2.411

* Qes 0.615

* Mmd 51.68g/1.82oz

* Qts 0.490

* Re 5.18O

* Vas 53.3lt/1.88ft3

* BI 13.29Tm

* Cms 0.133mm/N

* Rms 8.69kg/s

* Le (at 1kHz) 1.20mH

Mounting Information

* Diameter 309mm/12.17in

* Overall depth 140mm/5.5in

* Cut-out diameter 283mm/11.14in

* Mounting slot dimensions ø7.9/0.31

* Number of mounting slots 4

* Mounting PCD range 297mm/11.69in

* Unit weight 4.3kg/9.46lb

Packed Dimensions & Weight

* Multipack (60) size W x D x H 1080mmx980mmx880mm / 42.5in x 38.6in x 34.6in

* Multipack (60) weight 190kg/419lb
