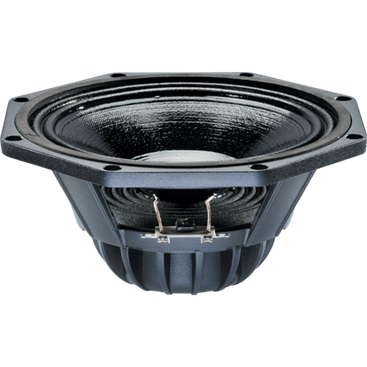

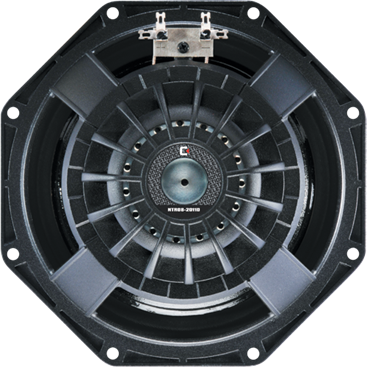

Celestion LF Cast Chassis Neo NTR08-2011D

* 8" neodymium magnet driver providing 200Wrms (AES standard) power handling and 92dB sensitivity

* 2" high temperature copper voice coil

* Suitable for line array applications, utilizing a space-efficient octagonal chassis profile

* Optimized flux distribution in magnet assembly provides low harmonic distortion

* "M-Roll" surround provides progressive excursion control, generating a smooth frequency response

* Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression

8 Ohm Frequency Response

1. Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

2. Measured on axis at 1W, 1m in 2p anechoic environment.

3. Xmax derived from: (voice coil winding width-gap depth)/2.

4. Small signal parameters measured after unit subjected to pre-conditioning signal.

#

General

* Nominal diameter 203mm/8in

* Power rating (1) 200Wrms

* Nominal impedance 8 Ohm

* Sensitivity (2) 92dB

* Frequency range 70-6000Hz

* Voice coil diameter 50mm/2in

* Chassis type Cast aluminium

* Magnet type Neodymium

* Coil material Round copper

* Former material Polyimide

* Cone material Kevlar loaded paper with weather-resistant coating

* Surround material Cloth-sealed

* Suspension Single

* Xmax (3) 4mm/0.16in

* Gap depth 8mm/0.32in

* Voice coil winding width 16mm/0.63in

Small Signal Parameters (4)

* D 0.17m/6.69in

* Fs 80.3Hz

* Mms 25.33g/0.89oz

* Qms 1.33

* Qes 0.59

* Mmd 23.39g/0.826oz

* Qts 0.41

* Re 5.85 Ohm

* Vas 11.3lt/0.399ft3

* BI 11.22Tm

* Cms 0.16mm/N

* Rms 9.6kg/s

* Le (at 1kHz) 0.59mH

Mounting Information

* Diameter 225mm/8.8in

* Overall depth 100mm/4.16in

* Cut-out diameter 100mm/4.16in

* Mounting slot dimensions ø6.5mm/0.26in

* Number of mounting slots 8

* Mounting slot PCD 210/8.3

* Unit weight 1.52kg/3.34lb

Packed Dimensions & Weight

* Single pack size W x D x H 235mm x 235mm x 140mm / 9.2in x 9.2in x 5.5in

* Single pack weight 1.75kg/3.85lb

* Multi pack (8) size W x D x H 450mmx380mmx260mm / 17.7in x 15.0in x 10.2in

* Multi pack (8) weight 16kg/35.2lb
