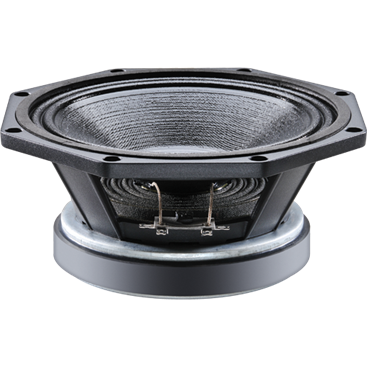

Celestion LF Cast Chassis Ferrite FTR08-2011D

* 8" ferrite magnet driver providing 200Wrms (AES standard) power handling and 93dB sensitivity

* 2" high temperature copper voice coil

* Suitable for line array applications, utilizing a space-efficient octagonal chassis profile

* Optimized flux distribution in magnet assembly provides low harmonic distortion

* "M-Roll" surround provides progressive excursion control, generating a smooth frequency response

* Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression

8 Ohm Frequency Response

1. Tested for two hours using a continuous, band-limited pink noise

signal as per AES standard. Power calculated on minimum impedance.

Loudspeaker tested in free air.

3. Measured on axis at 1W, 1m in 2p anechoic environment.

4. Xmax derived from: (voice coil winding width-gap depth)/2.

#

General

* Nominal diameter 200mm/8in

* Power rating (1) 200Wrms

* Nominal impedance 8 Ohm

* Sensitivity (2) 93dB

* Frequency range 70-6000Hz

* Voice coil diameter 50mm/2in

* Chassis type Cast Aluminium

* Magnet type Ferrite

* Coil material Round copper

* Former material Polyimide

* Cone material Kevlar loaded paper

* Surround material Cloth-sealed

* Suspension Single

* Xmax (3) 3.5mm/0.137in

* Gap depth 8mm/0.31in

* Voice coil winding width 15mm/0.59in

Small Signal Parameters

* D 0.17m/6.69in

* Fs 88.4Hz

* Mms 26.94g/0.95oz

* Qms 2.594

* Qes 0.572

* Mmd 25.01g/0.88oz

* Qts 0.469

* Re 5.74O

* Vas 8.77lt/0.30ft3

* BI 12.26Tm

* Cms 0.12mm/N

* Rms 5.769kg/s

* Le (at 1kHz) 0.39mH

Mounting Information

* Diameter 225mm/8.8in

* Overall depth 102mm/4.0in

* Cut-out diameter 187mm/7.4in

* Mounting slot dimensions Ø6.5mm/0.26in

* Number of mounting slots 8

* Mounting PCD range 210mm/8.3in

* Unit weight 3.65kg/8.0lb
