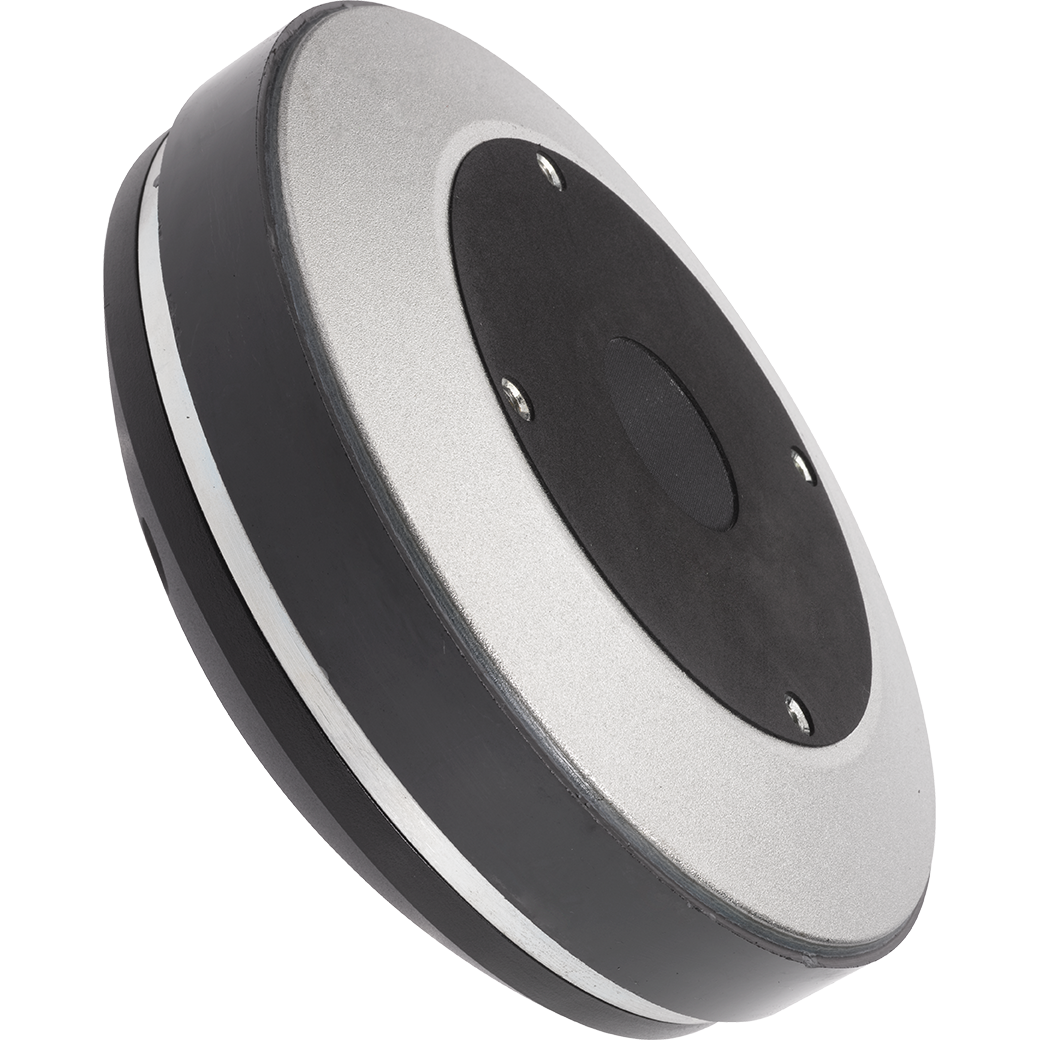

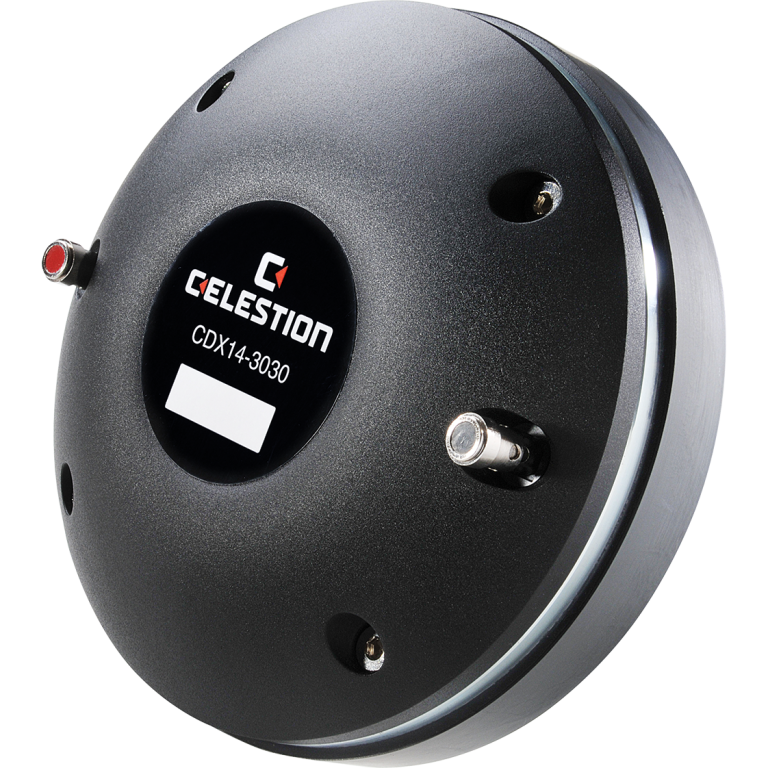

Celestion HF Compression Drivers/CDX14-3030

Specifications

Nominal Power Rating      100W

Continuous Power Rating      200W

Sensitivity      106.5dB

Rated Impedance      8?

Frequency Range      500Hz-18,000Hz

Voice coil diameter (mm)      75mm

Voice coil diameter (in)      3.0in

Recommended min. crossover (12dB/oct)      1000Hz

Magnet Type      Ferrite

Voice coil material      Edgewound copper clad aluminium

Diaphragm Material      Titanium

Surround Material      Titanium

Width (mm)      180mm

Width (in)      7.0in

Depth (mm)      68.0mm

Depth (in)      2.7in

Fitting      Bolt (4 x M6 holes on a 102mm/4in PCD)

Throat Exit (mm)      35mm

Throat Exit (in)      1.4in

Repair Kit 1 (Part Number)      T6509 (8?)

Mounting Information

Unit Weight      4.9kg/10.lb

Width      180mm/7.0in

Depth      68.0mm/2.7in

Weight      4.9kg/10.7lb

Fitting      Bolt (4 x M6 holes on a 102mm/4in PCD)

Throat Exit      35mm/1.4in

Packed Dimensions & Weight

Single pack size W x D x H      214mm x196mm x 82mm/8.4in x 7.7in x 3.2in

Single pack weight      5.1kg/11.2lb

Power Rating: Tested for two hours on plane wave tube using continuous band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

Continuous Power Rating is defined as 3dB greater than the AES rating.

Sensitivity measured on axis at 1W/1m, using typical horn, in 2? anechoic environment.
