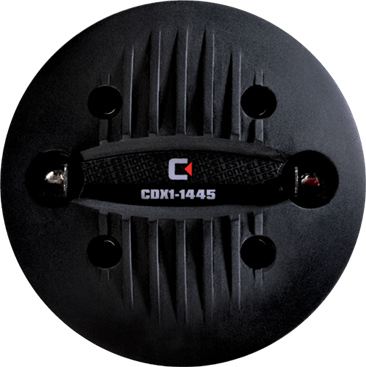

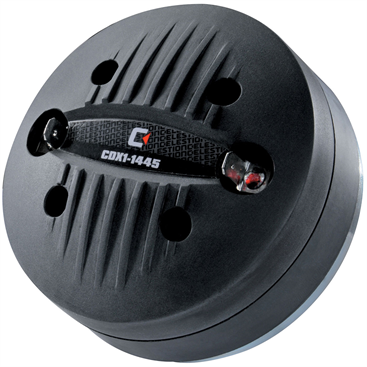

Celestion Compression Drivers or Ferrite CDX1-1445

* 1" exit lightweight and compact ferrite magnet compression driver with


* 1.4" copper clad aluminium voice coil


* 20Wrms power handling (AES standard) and 106dB sensitivity


* One piece PETP diaphragm and surround


* Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design


* Suitable for 2-way and 3-way systems

8O Frequency Response

1. Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

2. Measured on axis at 1W, 1m, using typical horn, in 2p anechoic environment.

#

General

* Power rating (1) 120Wrms


* Nominal impedance 8/16 Ohm


* Frequency range 1500-20,000Hz


* Sensitivity (2) 106dB


* Recommended min. crossover (12dB/oct) 2200Hz


* Voice coil diameter 35mm/1.4in


* Voice coil material Copper clad aluminium


* Magnet type Ferrite


* Diaphragm material PETP film


* Surround material PETP film

Mounting Information


* Overall width 90mm/3.54in


* Overall depth 46.5mm/1.83in


* Fitting Flange (4 x M6 holes on 76mm/3in PCD)


* Throat exit 25mm/1in


* Unit weight 1kg/2.2lb

Packed Dimensions & Weight


* Multi pack (8) size W x D x H 500mm x 485mm x 110mm


  ............................................./19.7in x 19.1in x 4.3in


* Multi pack (8) weight 8.8kg/19.4lb
