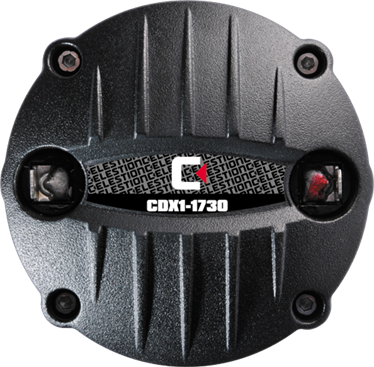

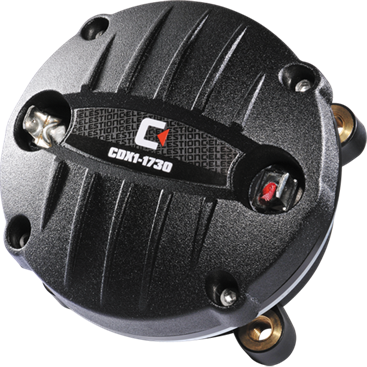

Celestion Compression Drivers Neo CDX1-1730
Celestion Compression Drivers Neo CDX1-1730

Celestion Compression Drivers Neo CDX1-1730

Rp 0,00
Regular price Rp 0,00

* 1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil

* 40Wrms (AES standard) power handling and 110dB sensitivity

Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion



* One piece PETP film diaphragm and surround



* Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver







8O Frequency Response







1. Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.



2. Measured on axis at 1W, 1m, using typical horn, in 2p anechoic environment.



#

General



* Power rating (1) 40Wrms



* Nominal impedance 8 Ohm



* Frequency range 1200-20,000Hz



* Sensitivity (2) 110dB



* Recommended min. crossover (12dB/oct) 2200Hz



* Voice coil diameter 44mm/1.75in



* Voice coil material Edgewound copper clad aluminium



* Magnet type Neodymium



* Diaphragm material PETP film



* Surround material PETP film





Mounting Information



* Overall depth 55mm/2.2in



* Fitting Flange (4 x M6 holes on 76mm/3in PCD)



* Throat exit 25.4mm/1in



* Maximum width 88.5mm/3.48in



* Minimum width 82.0mm/3.23in



* Unit weight 0.65kg/1.4lb





Packed Dimensions & Weight



* Single pack size W x D x H 90mm x 90mm x 60mm

............................................../3.5in x 3.5in x 2.4in



* Single pack weight0.75kg/1.7lb



* Multi pack (16) size W x D x H500mm x 485mm x 110mm

.................................................../19.7in x 19.1in x 4.3in



* Multi pack (16) weight11.2kg/24.9lb
