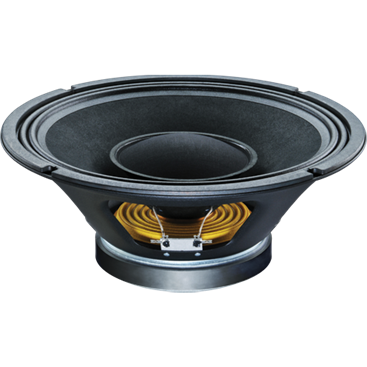

Celestion CoaxialTwin Cone K12H-200TC

* 12" twin cone drive unit with extended high frequency response

* 2" high temperature copper voice coil for increased reliability and 200Wrms (AES standard) power handling

* Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality

* Secondary cone terminated by pressure formed cloth dust cap for enhanced mid-band clarity

* High efficiency magnet structure design delivers improved sensitivity

* Double roll surround for greater excursion control and smooth frequency response

8 Ohm Frequency Response

1. Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

2. Measured on axis at 1W, 1m in 2p anechoic environment.

3. Xmax derived from: (voice coil winding width-gap depth)/2.

General

* Nominal diameter 305mm/12in

* Power rating (1) 200Wrms

* Nominal impedance 8 Ohm

* Sensitivity (2) 98dB

* Frequency range 50-10,000Hz

* Voice coil diameter 50mm/2in

* Chassis type Pressed steel

* Magnet type Ferrite

* Magnet weight 1.41kg/50oz

* Coil material Round copper

* Former material Polyimide

* Cone material Kevlar loaded paper

* Surround material Cloth-sealed

* Suspension Single

* Xmax (3) 2mm/0.08in

* Gap depth 8mm/0.31in

* Voice coil winding width 12mm/0.47in

Small Signal Parameters

* D 0.26m/10.24in

* Fs 60.0Hz

* Mms 46.514g/1.64oz

* Qms 4.585

* Qes 0.583

* Mmd 39.592g/1.39oz

* Qts 0.481

* Re 5.61 Ohm

* Vas 60.3lt/2.13ft3

* BI 13.535 Tm

* Cms 0.151mm/N

* Rms 3.826 kg/s

* Le (at 1kHz) 0.683 mH

Mounting Information

* Diameter 309mm/12.2in

* Overall depth 130.25mm/5.14in

* Cut-out diameter 283mm/11.14in

* Mounting slot dimensions ø7.9mm/0.31in

* Number of mounting slots 4

* Mounting PCD range 297mm/11.69in

* Unit weight 3.9kg/8.6lb

Packed Dimensions & Weight

* Single pack size W x D x H 333mm x 322mm x 145mm / 13.1in x 12.7in x 5.7in

* Single pack weight 5.0kg/11lb
