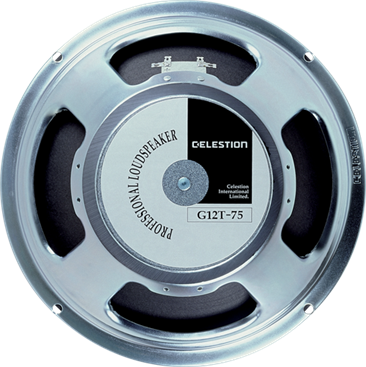

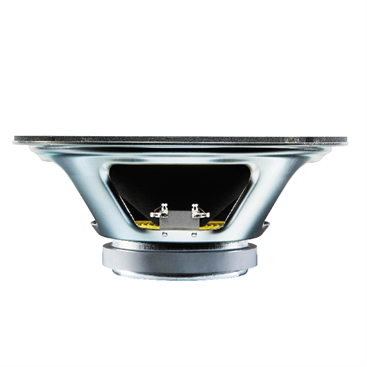

Celestion Classic G12T-75

Featured in the world's top selling 4x12 cabinet, the G12T-75 is a high powered rock player's dream.

Built to meet the demands of high gain amplifiers, the G12T-75 combines a huge, tightly controlled low-end and aggressive mid-range with a softened top-end that adds a welcome sweetness to overdrive, distortion and aggressive upper harmonics. These are the characteristics that make the G12T-75 the weapon of choice for Yngwie Malmsteen.

8 Ohm Frequency Response

General

* Nominal diameter 12", 305mm

* Power rating 75Wrms

* Nominal impedance Available 8 Ohm or 16 Ohm

* Sensitivity 97dB

* Chassis type Pressed steel

* Voice coil diameter 1.75", 44.5mm

* Voice coil material Round copper

* Magnet type Ceramic

* Magnet weight 35oz, 0.99kg

* Frequency range 80-5000Hz

* Resonance frequency, Fs85Hz

* DC resistance, Re Available 6.77 Ohm or 12.9 Ohm

* Mounting Information

* Cut-out diameter 11.1", 283mm

* Diameter 12.2", 309mm

* Magnet structure diameter 5.7", 145mm

* Mounting slot dimensions 0.31", 7.9mm Ø

* Mounting slot PCD 11.7", 297mm

* Number of mounting slots 4

* Overall depth 5.0", 127mm

* Unit weight 7.7lb, 3.5kg
