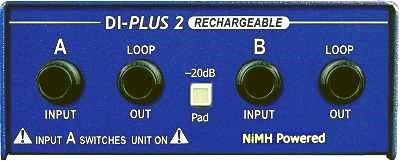

ARX Stereo Active Direct Box with NiMH battery DI-PLUS 2RC

-

-

Max Input Level
+12 dB Phantom powered
+6 dB Battery powered

Input Impedance 1 Meg Ohm

Max Output Level
+17 dB 10K Ohm load Phantom powered
+12 dB 10K Ohm load Battery powered
+11 dB 600 Ohm load Phantom powered
+12 dB 600 Ohm load Battery powered

Output Impedance 680 Ohms Balanced

Output Signal to Noise
-100 dB unweighted
-104 dB A weighted

Dynamic Range
117 dB 10K Ohm load Phantom powered
112 dB 10K Ohm load Battery powered
111 dB 600 Ohm load Phantom powered
107.5 dB 600 Ohm load Battery powered

Distortion 100 Hz .0018%, 1KHz .0028%, 10KHz .0056%

Frequency Response 20Hz to 20KHz, ± 0.2 dB

Gain through Unit: 6dB (Pad switch out)

Pad Switch: Global -20 dB attenuation

Input and Loop Out Connectors
Insulated jacks (!!!Note that Channel A Input connector switches the unit on when a plug is inserted. Remove plug when storing to avoid battery drain!!!)

Output Connectors
3 pin XLR. Wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold.
Global Audio Ground (Pin 1) lift switch

Construction
All-steel chassis, fibreglass PCB, NiMH battery
