ARX DI Plus2 RC Stereo Active Direct Box with NiMH battery

Phantom and Rechargeable NiMH battery powered in a rugged steel chassis

As a manufacturer, ARX is well aware of the problems of disposing of batteries in an environmentally friendly way so we've powered the DI Plus2 RC with an internal long life NiMH (Nickel Metal Hydride) rechargeable battery that can be charged off either the phantom power on the mic line, or via the 12V DC input, removing battery "throw away" as an issue.

The new DI Plus2 RC features a low noise high impedance input buffer with switchable 20dB Pad, and a low distortion high current output stage able to drive the longest cable runs. It represents another major step forward in active direct boxes. Packaged in a single channel stand-alone format, the DI Plus2 RC represents a fresh look at active D.I. concepts.

Precision engineered
Ultra quiet, ultra clean circuitry delivers maximum headroom whatever the signal. Premium grade components, plus an all-steel chassis gives excellent hum and noise specifications and superb audio quality in a tough, roadworthy package. The DI Plus2 RC features two high impedance unbalanced inputs on the front panel, running to balanced XLR outputs on the rear. Accurate Left and Right channel level matching keeps the stereo image centred.

Level control
The DI Plus2 RC features a Normal gain high impedance unbalanced input on the front panel, running to a balanced XLR output on the rear. There is also a separate -40dB Speaker Level input for signal coming from the External (auxiliary) speaker output of an amplifier. A global Pad switch drops both the normal input and the speaker input by a further 20dB, making it suitable for all applications, from the softest keyboard to the hottest broadcast levels.

Precision engineered
A global Pad switch drops inputs by 20dB, making it suitable for all applications from the softest keyboard to the hottest broadcast levels.

Automatic Phantom switching

Rugged all-steel case
A lot of direct boxes are fitted into brittle cast alloy cases. Not this one! The tough all-steel inner and outer chassis of the DI Plus2 RC provide excellent RF/EMF shielding while making it a sturdy, heavy duty unit that is hard to dislodge, and hard to leave behind.

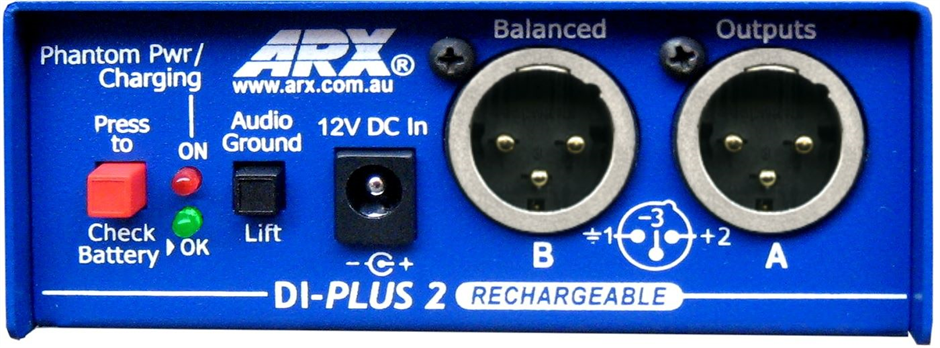

Rear panel showing Left and Right XLR connectors, ground lift switch, battery check switch and LED, plus phantom power On LED and 12V DC Input for battery charging if there is no Phantom Power


Whether you're a Studio or Live Sound engineer, installation contractor, or broadcast engineer, you want all the dynamics,clarity and stereo information of the original sound source transferred to the mixing console. The ARX DI Plus2 RC provides a rugged, no-compromise solution to all stereo direct injection and signal balancing requirements.
