ARX Audibox ISO De-Balancer Unique dual channel balanced to unbalanced line converter from the Audibox range

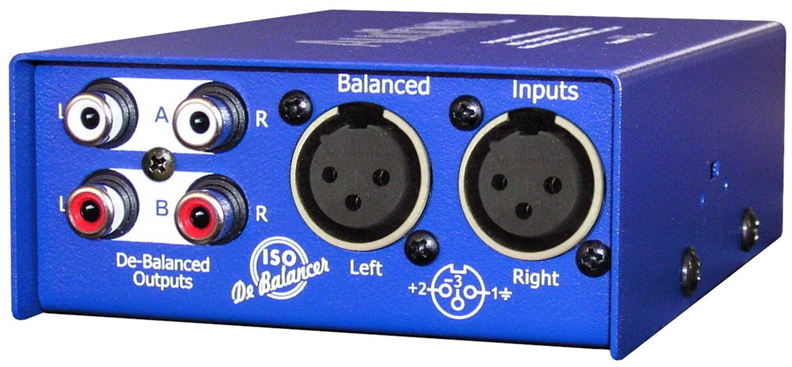

Audibox ISO De-Balancer

A Unique de-balancing box, the De-Balancer will convert stereo Balanced Low Impedance signals to Unbalanced Low Impedance signals, to allow leads to run balanced from A to B and then be de-balanced for connecting to a high impedance/unbalanced input at the other end
This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application

The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.

Available in Dual Channel format only

Applications:

* Any pro audio-to-consumer interfacing;

* Especially suited to receiving Audio-for-Video around venues for AV displays, plasma screens, etc when used with the Audibox Balancer or Optimizer

Passive unit - no power required

Input Impedance 10K Ohms Balanced

Output Impedance 10K Ohms Unbalanced

Input Level (max) +12dB

Frequency Response 20Hz - 20 KHz ± 0.5dB

THD at Max Output 0.2% 30 Hz - 20KHz

Insertion Loss 0.75dB @ 1 KHz (600 Ohm source)

Input Connector
3 pin female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Chassis Ground connected to XLR Pin 1

Output Connectors Dual stereo RCA connectors

Construction
All-steel powdercoated chassis, fibreglass PCB, ultra low noise audio transformer
