Alto MAC 2.2

2-CHANNEL 1500 WATT POWER AMPLIFIER

1500 Watts @ 4 O bridged mono

2 x 750 Watts @ 2 O; 2 x 280 Watts @ 8 O

Convenient front-panel level controls

High-visibility LEDs indicate clipping and protection

Switchable 30 Hz low-cut filter

Balanced 1/4" and XLR inputs

Speakon and binding post outputs

Low-noise variable speed fan

Compact two rack-space design

Stereo Mode:

2 x 750 Watts @ 2 O (EIAJ)

2 x 420 Watts @ 4 O (EIAJ)

2 x 350 Watts @ 4 O (RMS)

2 x 280 Watts @ 8 O (EIAJ)

2 x 230 Watts @ 8 O (RMS)

Bridge Mode:

1 x 840 Watts @ 8 O (EIAJ)

1 x 710 Watts @ 8 O (RMS)

1 x 1500 Watts @ 4 O (EIAJ);

Input Connectors:

Balanced; 1/4", XLR

Output connectors:

Binding post, Speakon

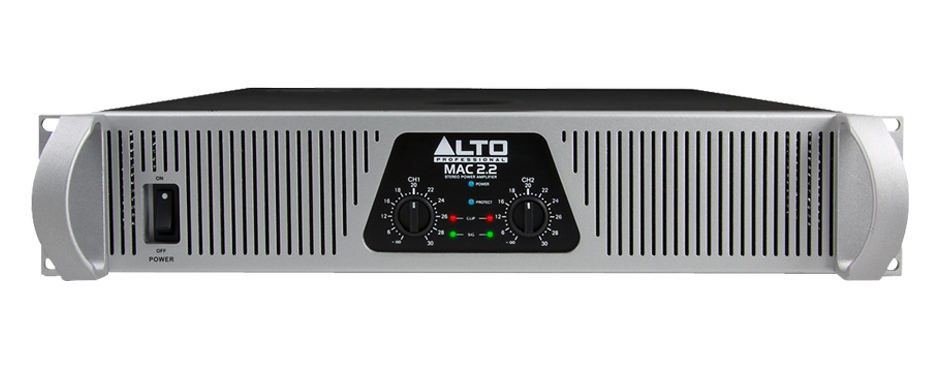

Front Panel Controls:

Power Switch

Channel Level Controls (–8 to +30 dB)

LED Indicators:

Power (Blue)

Protection (Red)

Clip (Red) x 2

Signal (Green) x 2

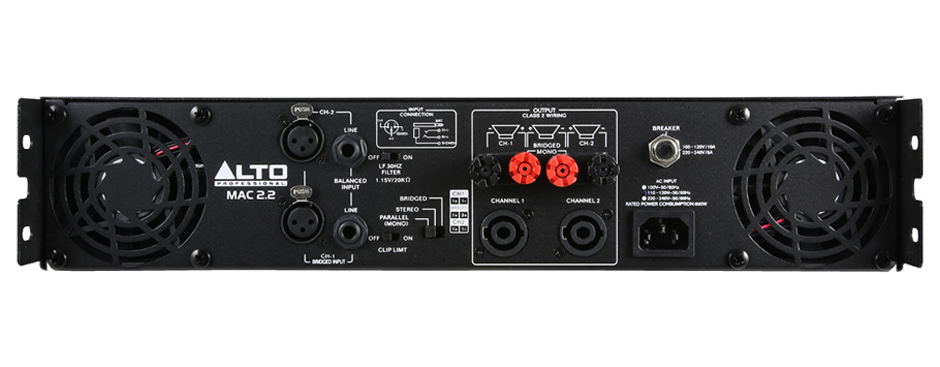

Rear Panel Controls:

30 Hz Low-Cut Filter (On/Off)

Bridge/Stereo/Parallel mode switch

S / N Ratio:

100 dB

Damping Factor:

>100 at 1 kHz

Dimensions (WxLxH): 19in x 18.1in x 3.5in

Weight: 30 lb
